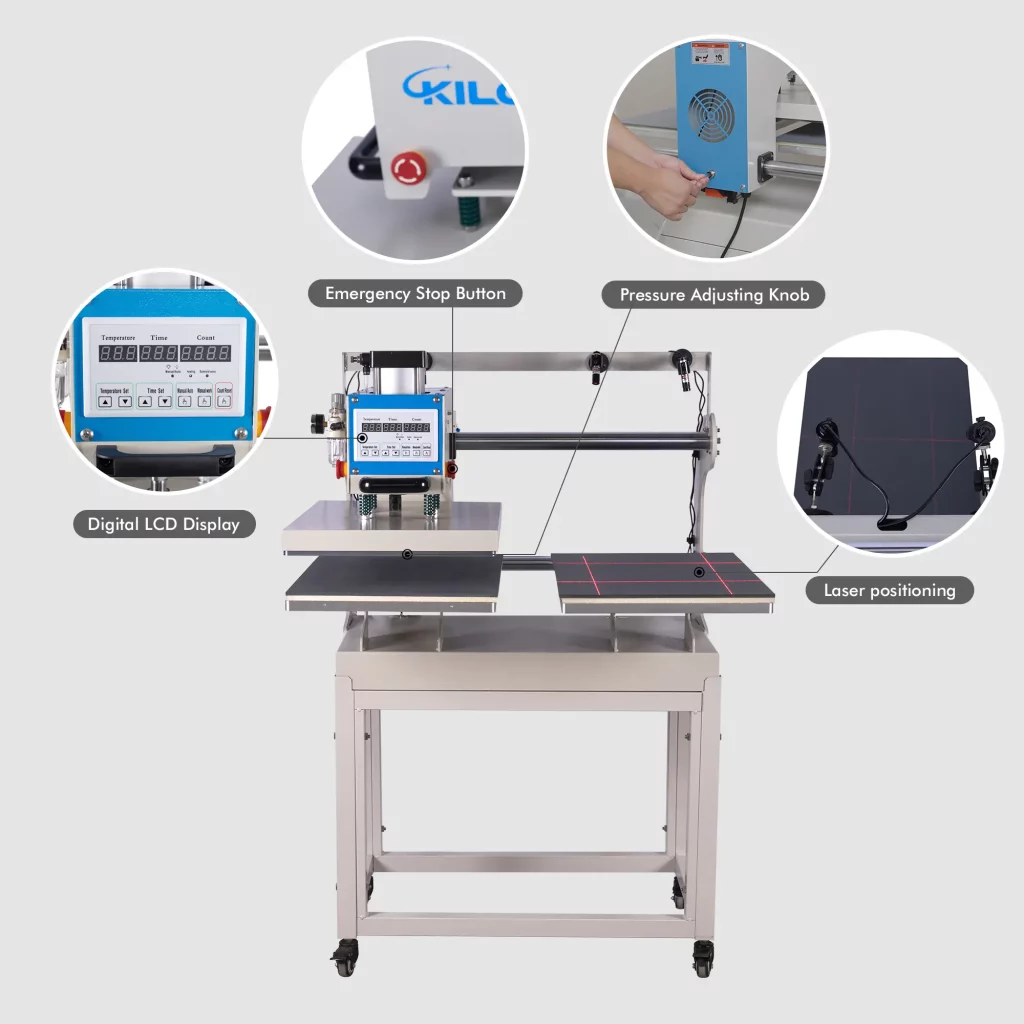

If you’ve recently purchased the KILO 16×24 Pneumatic Dual Platen Heat Press Machine or are upgrading your production setup, this step-by-step guide will walk you through everything — from pneumatic heat press installation and air compressor setup to adjusting heat press pressure, switching modes, and dual platen heat press maintenance.
Designed for professional printing businesses and serious hobbyists, the KILO heat press delivers precision, speed, and consistency for large-format garment printing, sublimation, and heat transfer projects. Whether you’re a first-time user or a seasoned pro, this guide will help you maximize performance and lifespan of your investment.
Table of Contents
Click here to view 16″x24″ Pneumatic Dual Heat Press
⚡ Electrical Specifications – KILO 16×24 Dual Platen Pneumatic Auto Heat Press
Power Requirements:
- Voltage: 110V
- Wattage: 2000W
- Current: 20A circuit required
- Plug Type: US standard 3-prong power plug
💡 Important Setup Note – Always ensure your electrical circuit has a 20-amp breaker for safe operation. A standard household 15-amp circuit may not be sufficient for a pneumatic heat press machine.
Pre-Installation Checklist:
✓ 110V power supply
✓ 20A circuit breaker
✓ US standard outlet
✓ Dedicated circuit recommended
For optimal performance and safety:
- Use a dedicated power line
- Hire a licensed electrician for inspection if unsure
- Avoid sharing the circuit with other high-power devices
1. Pneumatic Heat Press Installation Guide – How to Install and Connect the Machine
Step-by-Step:
- Place the heat press machine on a stable, level surface.
- Connect the power cord to a dedicated 20A outlet.
- Check that all bolts, screws, and frame components are secure.
- Ensure heat plates are clean before first use.
2. Connecting the Air Compressor to the KILO Heat Press
The KILO Pneumatic Heat Press requires an air compressor to operate the automatic pressing function.
To connect:
- Locate the air inlet port at the rear of the machine.
- Use the supplied air tubing from the accessory bag to connect your compressor.
- Tighten fittings to prevent air leaks.
3. How to Set Heat Press Pressure
- Find the pressure regulator knob on the control panel.
- Turn clockwise to increase PSI, counterclockwise to reduce PSI.
- Monitor the built-in pressure gauge for accurate adjustments.
4. How to Set the Temperature and Time on KILO Heat Press
Correct temperature and time settings are crucial for achieving vibrant, long-lasting transfers without damaging your substrate.
Step-by-Step Temperature & Time Setup:
- Turn on the Machine – Power up the heat press and allow it to initialize.
- Access the Control Panel – Locate the temperature/time control buttons on the digital display.
- Set the Temperature –
- Use the ▲▼ buttons to adjust to the desired temperature in °F or °C.
- Example: 320°F (160°C) for HTV, 400°F (205°C) for sublimation.
- Set the Time –
- Adjust the timer according to your transfer material.
- Example: 10–15 sec for HTV, 45–60 sec for sublimation.
- Preheat Before Use – Wait until the heat plate reaches the set temperature before pressing.
Click here to learn How to converting Celsius or Fahrenheit
Recommended Temperature & Time Guide:
| Material / Process | Temperature | Time |
| Heat Transfer Vinyl (HTV) | 320°F / 160°C | 10–15 sec |
| Sublimation (Polyester) | 400°F / 205°C | 45–60 sec |
| Cotton Fabric (DTF) | 340°F / 171°C | 15–20 sec |
| Hard Substrates (Mugs, Metal) | 400°F / 205°C | 60 sec+ |
💡 Pro Tip: Always check the manufacturer’s instructions for your transfer paper, film, or vinyl — different brands may require slightly different settings.
5. Switching Between Automatic and Manual Heat Press Modes
- Automatic Mode – Press opens/closes automatically based on your set time & pressure. Ideal for high-volume production.
- Manual Mode – You control pressing duration manually. Best for delicate materials or experimental designs.
Use the Auto/Manual switch on the digital control panel to change modes.
6. Best Air Compressor for Pneumatic Heat Press – Minimum & Recommended Specs
Minimum Requirement: 5 gallons, 135 PSI Recommended: 10+ gallons, 135 PSI
Click here to view 6.3 gallons Ultra-Quiet Air Compressor
Advantages of larger capacity:
- Less frequent cycling
- Lower noise
- Better long-term performance
🔊 Pro Tip: Quiet Air Compressor Option
- Ultra-quiet model: ~66dB noise level (similar to a normal conversation)
- Perfect for home studios and residential areas
- Much quieter than regular compressors (80–90dB)
7. Dual Platen Heat Press Maintenance – Lubricating the Cylinders
Adding Oil:
- Unscrew the indicated bolt (see manual image).
- Add oil until it barely touches the suction tube.
Annual Maintenance:
- Pre-lubricated from factory
- Only 5 drops of cylinder oil per year needed
Click here to read How to Lubricate the Cylinder on Your Kilo Pneumatic Heat Press Machine (and Recommended Oil Specifications)
8. KILO 16×24 Heat Press Accessories Explained
The screws in the accessory package are for securing the heat press machine’s frame. The tubing is for connecting the air compressor. The remaining items are spare parts:
①The blue component is a spare limit switch (installed behind the pressure plate)
②The black component is a spare solid-state relay (installed inside the machine head behind the digital control panel)
Note: Please keep all spare parts in a safe place for future use.
Custom Heat Press Solutions
Need a custom-sized heat press? KILO can design machines to match your exact needs. Contact us for details.
📞 Phone: +1 (909) 749-8866
⏰ Available for consultation 24/7
🌐 Custom size options available
💬 Professional technical support
Whether you’re running a small business or managing large-scale production, we can help you find the perfect heat press solution for your needs. Our team of experts is ready to discuss your requirements and provide professional recommendations.
Contact us today to discuss your custom heat press requirements!
📌 Frequently Asked Questions (FAQ) – KILO Pneumatic Dual Heat Press
Why is my pneumatic heat press not closing?
Check air compressor connection, ensure at least 135 PSI, and verify there are no leaks. Also confirm machine is in Automatic Mode and pressure is set correctly.
What is the best PSI setting for heat transfer vinyl (HTV)?
For HTV, 60–80 PSI is ideal. Thicker fabrics like hoodies may require 80–120 PSI. Always test first.
How often should I lubricate the pneumatic cylinders?
Only 5 drops of pneumatic cylinder oil once per year. Over-lubricating can cause problems.
What is the best air compressor for a pneumatic heat press?
A 6+ gallon ultra-quiet compressor (~66dB) is ideal. Minimum requirement: 5 gallons, 135 PSI.
Can I use a pneumatic heat press at home?
Yes, with a dedicated 20A circuit and an ultra-quiet compressor, it’s suitable for home use.
Why does my heat press lose pressure during operation?
Tank may be too small or cycling too often. Upgrade to a larger tank to maintain consistent PSI.
How do I switch from manual to automatic mode?
Use the Auto/Manual selector switch on the control panel.
Can I Replace the Heat Press Lower Platen with Different Sizes?
The KILO 16×24 dual series supports replacing the lower platen with different sizes, allowing you to work on various garment sizes, accessories, and specialty items more efficiently. Check Here
Heat display has a LLL code what does this mean
