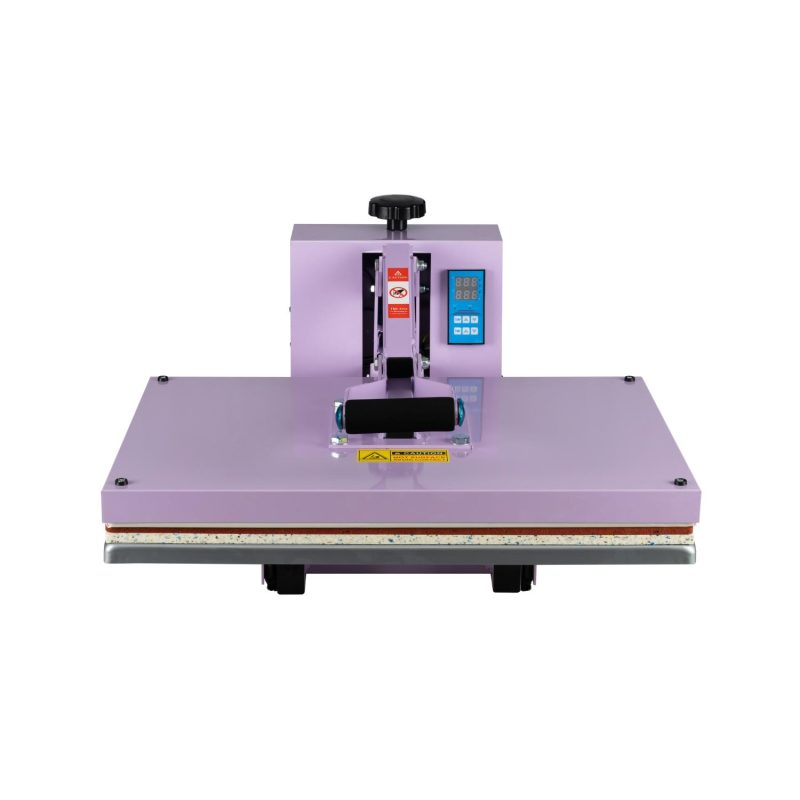

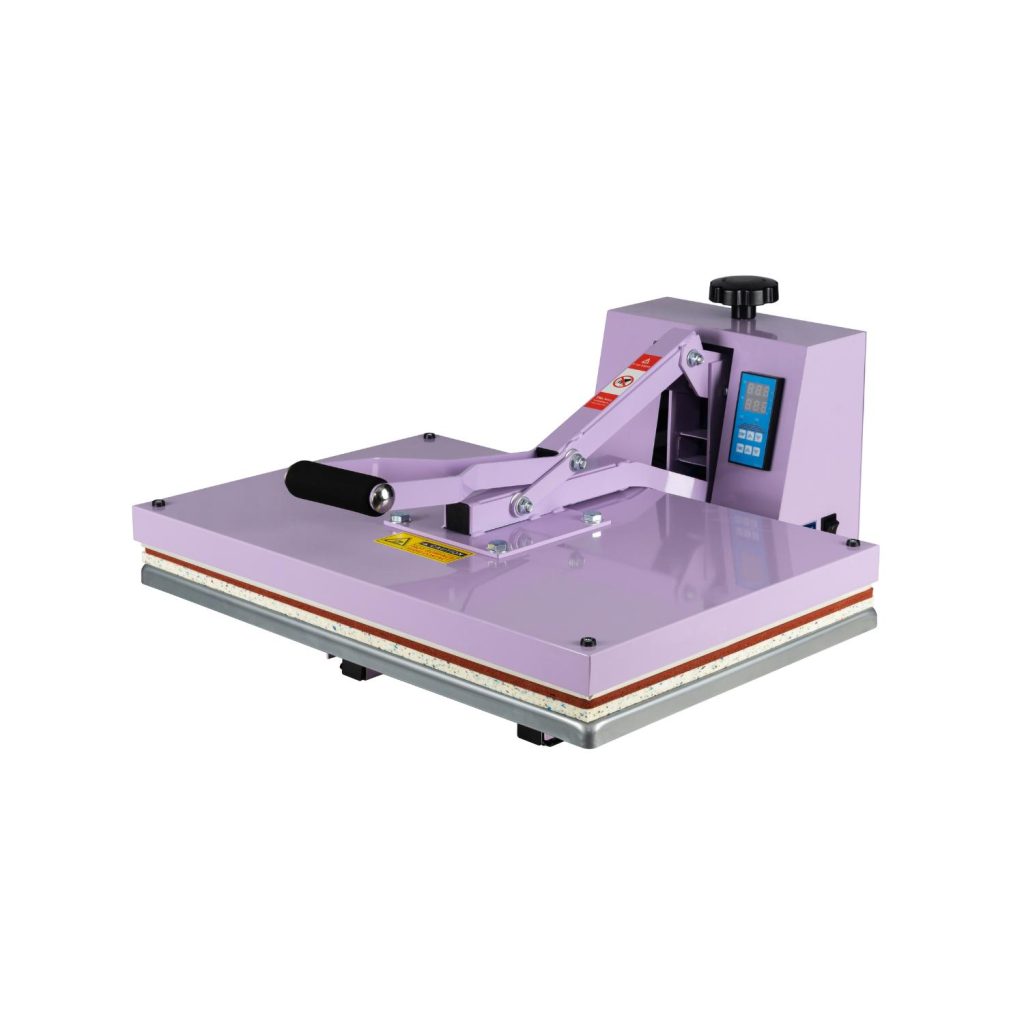

16×24 Manual Heat Press Machine with Slide-Out Base
16 x 24 inch Heat Press Machine Fast Heating & One Station & Efficient Transfer
This Industrial-quality clamshell heat press adopts the latest heating technology and two-layer insulation pads to improve the transfer performance. The stability has also been enhanced with a high precision temperature sensor and accurate time controller, widely used for home decorations, customized gifts, and holiday celebrations.
- 16 x 24 in Large Platen
- Digital Control Board
- Teflon Insulation Coating
- Adjustable Pressure Knob
- Easy to Use
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-99 |
| G.W.(LB): | 77.18 |
| Packing Size(in): | 31.5×28.0x17.5 |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |

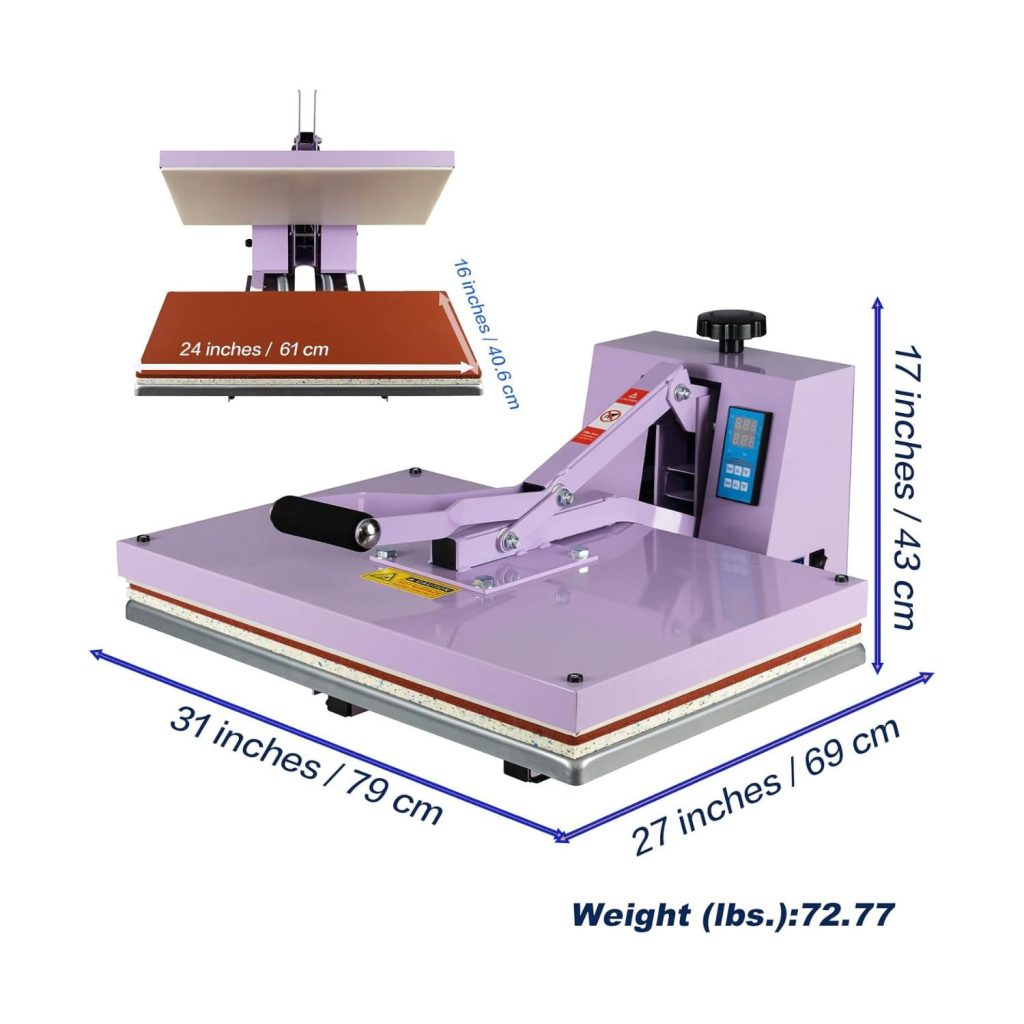

| Heat Plate Size: | 16″ x 24″ (40 x 60cm) |
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Metal pendant | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite / Key ring pendant | 180s | 356℉ (180℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
Features
Upgraded Teflon Coating
This Teflon-coating heat press is capable of decreasing the possibility of scorching during the transfers. Besides, it’s easy to clean and can make printing more steady. A ground wire is also equipped for secure operation.
Tightly Wrapped
Adjustable pressure knobs, fitted-to-palm handle, and two soft silicone & sponge heating pads provide a full range of heating effects. Multiple designs help the mats tightly wrap the materials. Especially suitable for the transfer of flat items.

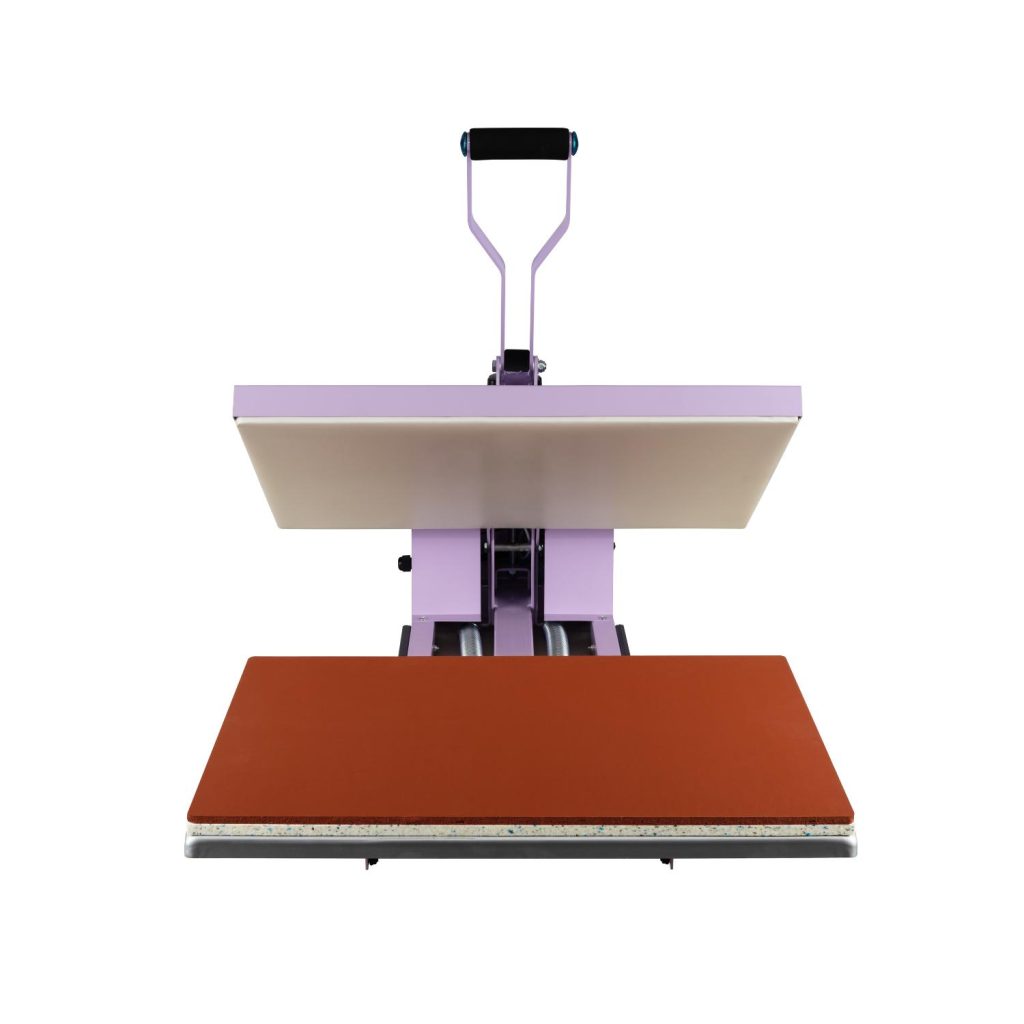

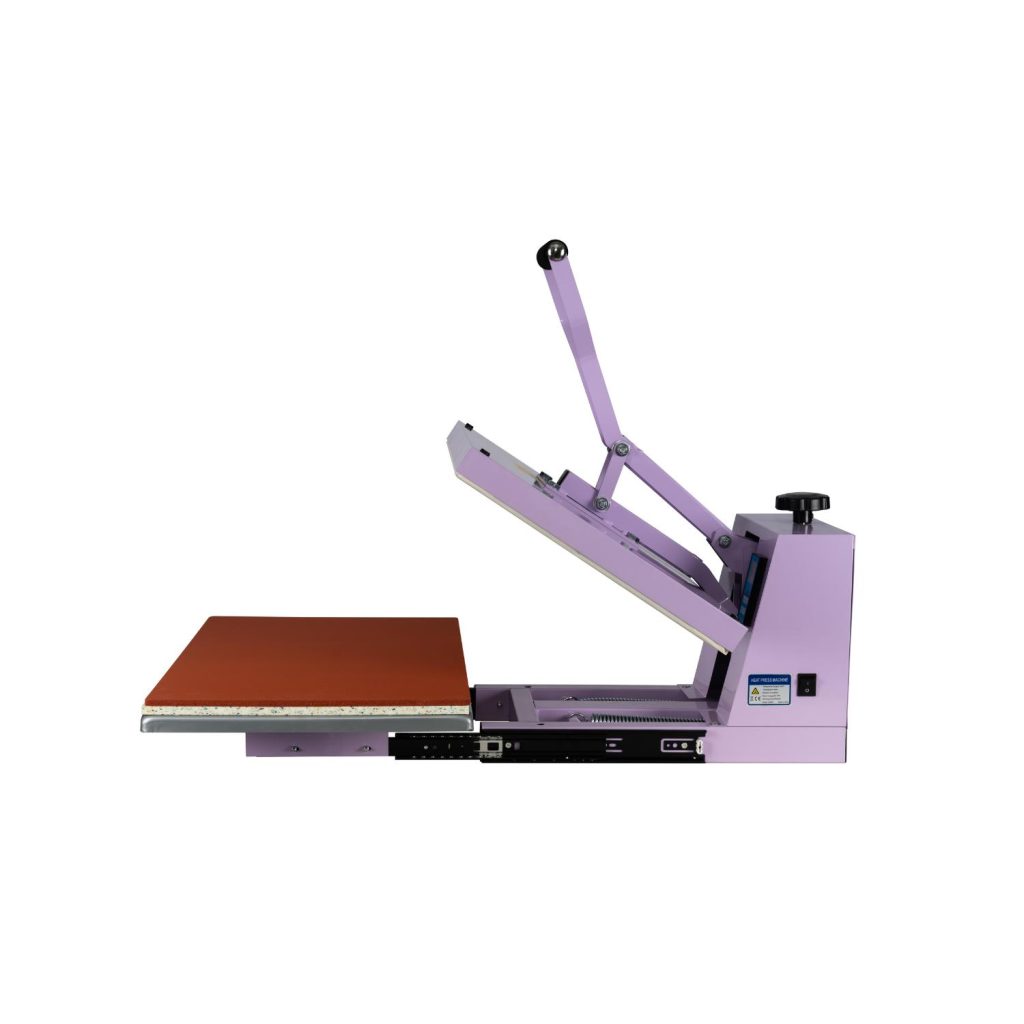

Slide- out Lower Platen
The slide- out lower platen can avoid scalding, easy to pull and push
