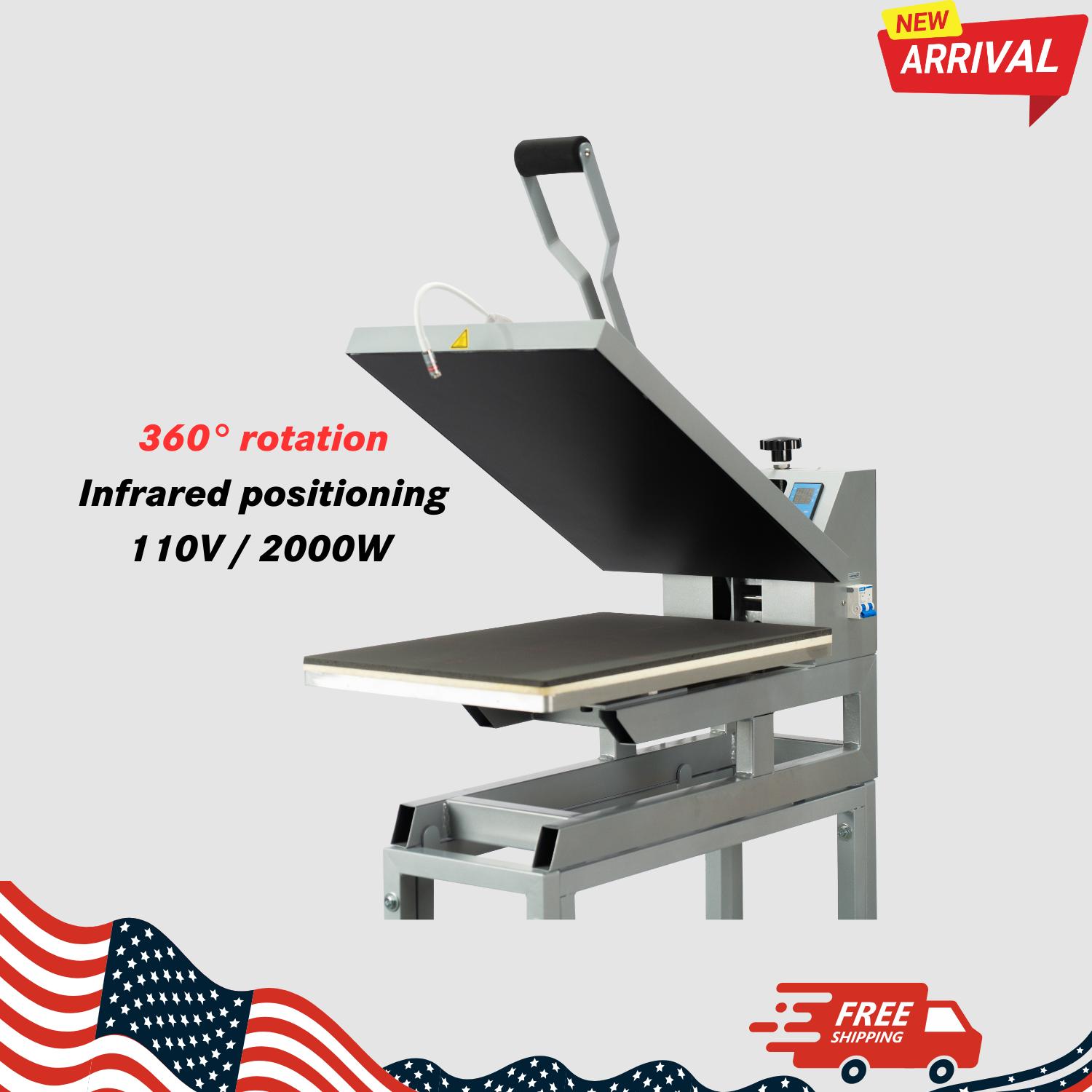

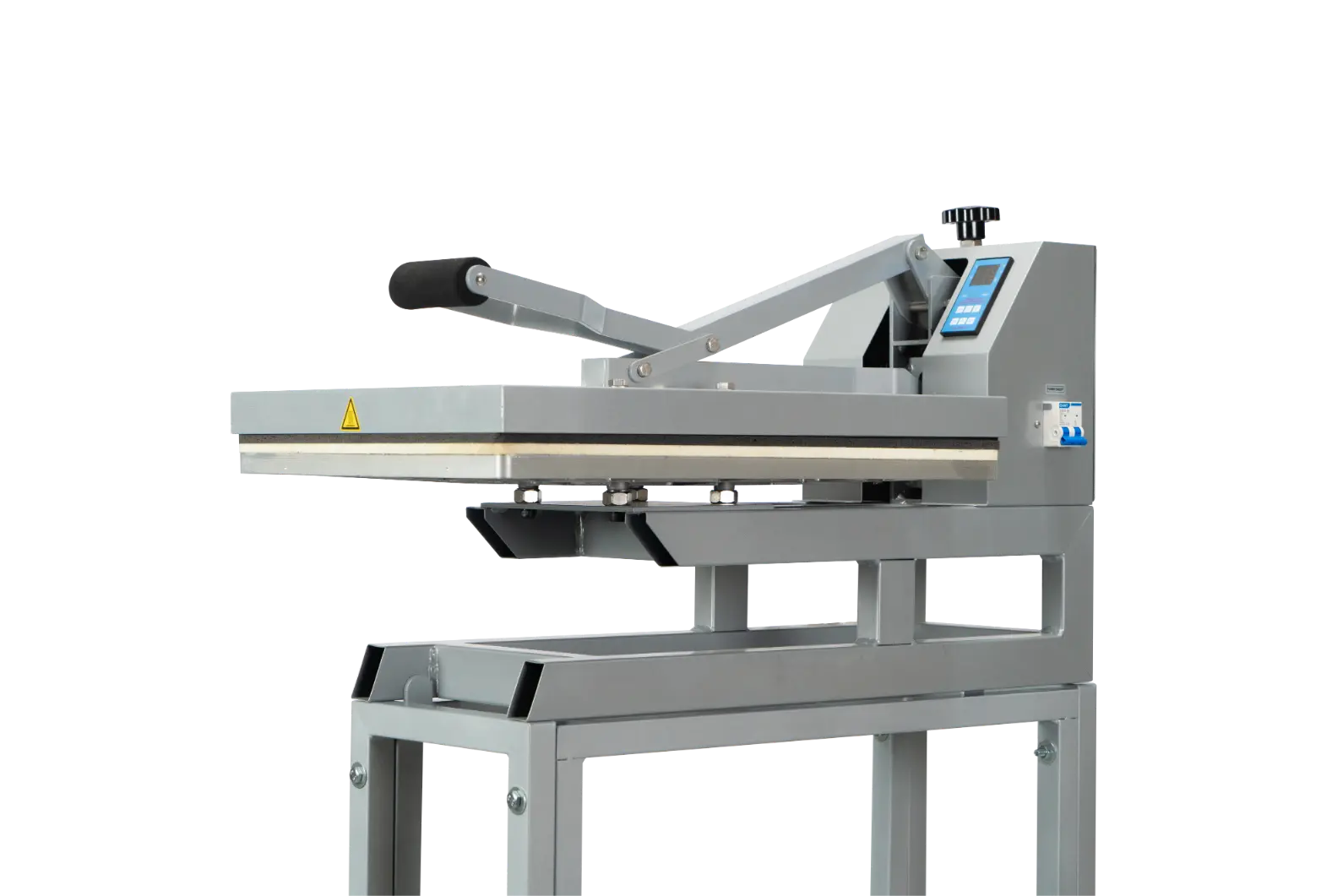

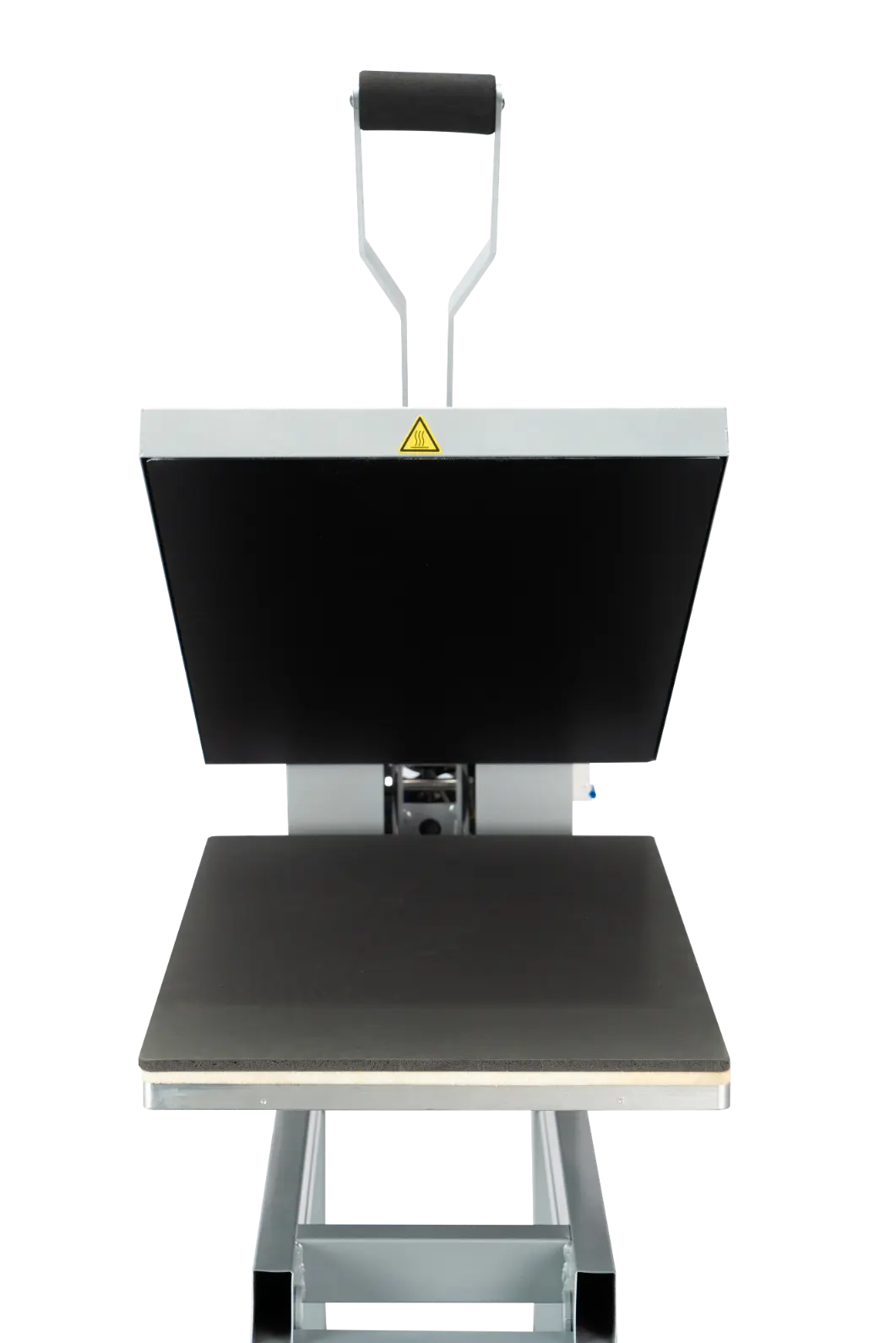

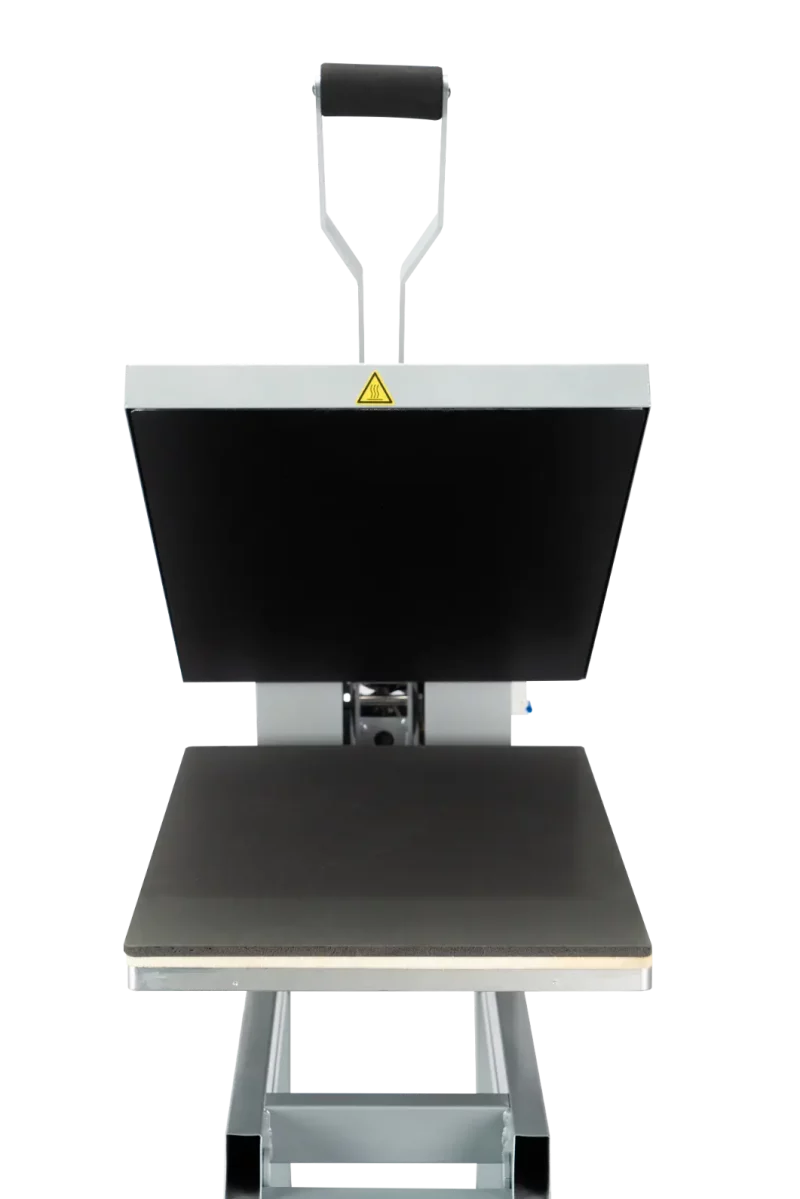

16×24 Format Manual Heat Press Machine With Infrared Positioning, 110V / 2000W
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |

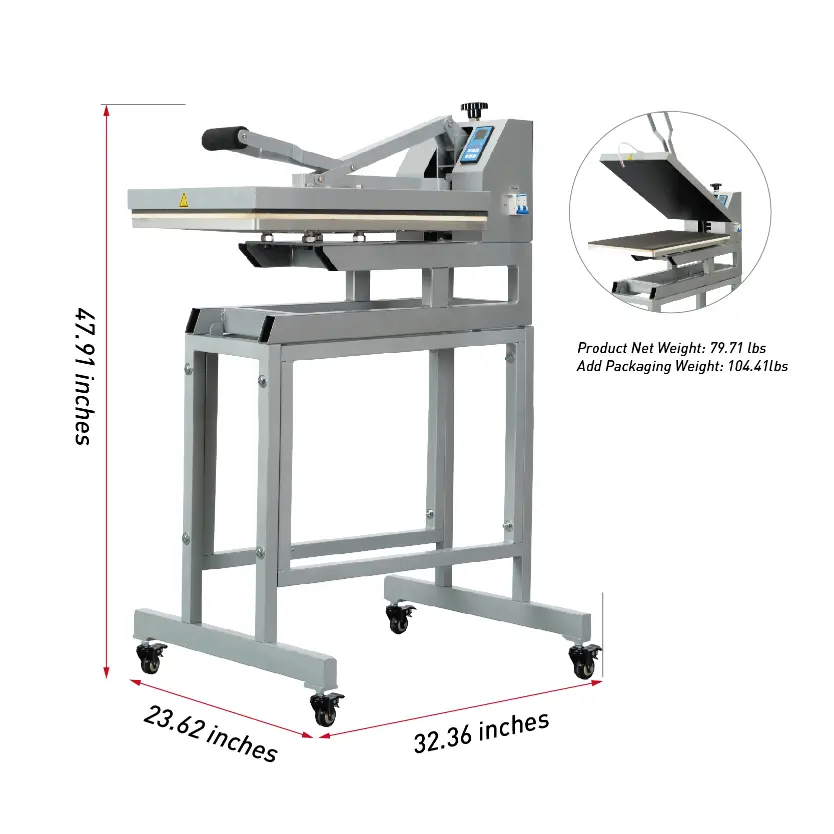

| G.W.(LB): | 104.41 |
| Packing Size(in): | 34.6″ x 17.7″ x 24.8″ |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16” x 24” (40 x 60cm) |
Features
- The heating plate adopts special ultra-precision wire tube technology with Teflon technology
- 16×24 Format Manual Heat Press Machine with Infrared Positioning, 110V, 2000W
- Heating plate equipped with 12 sets of heating tubes to ensure uniform heating and eliminate temperature differences.
- Heating plate, bottom plate with vertical structure can be set on ready-to-wear garments, single layer pressing and stamping
- Lower plate covered with silicon mat and sponge to heat even heating pressure
- Heat press machine with a base frame and universal casters for more stable printing and easy movement

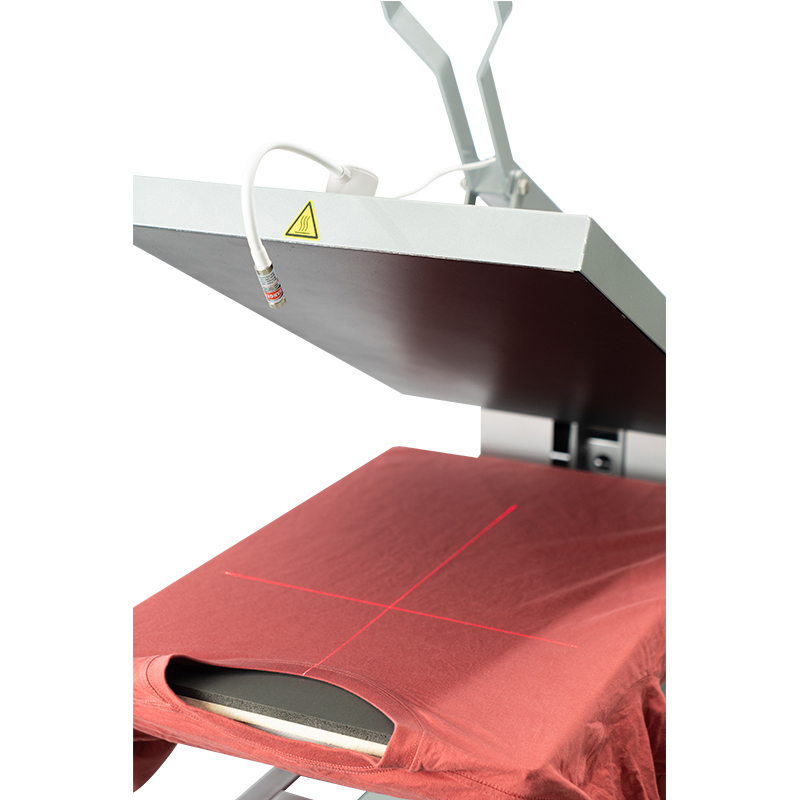

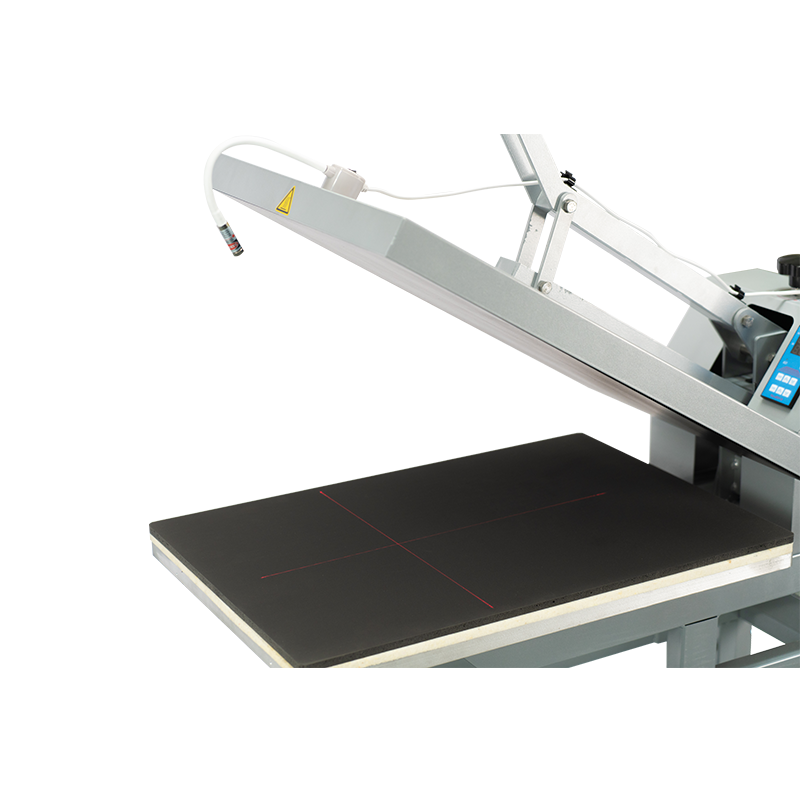

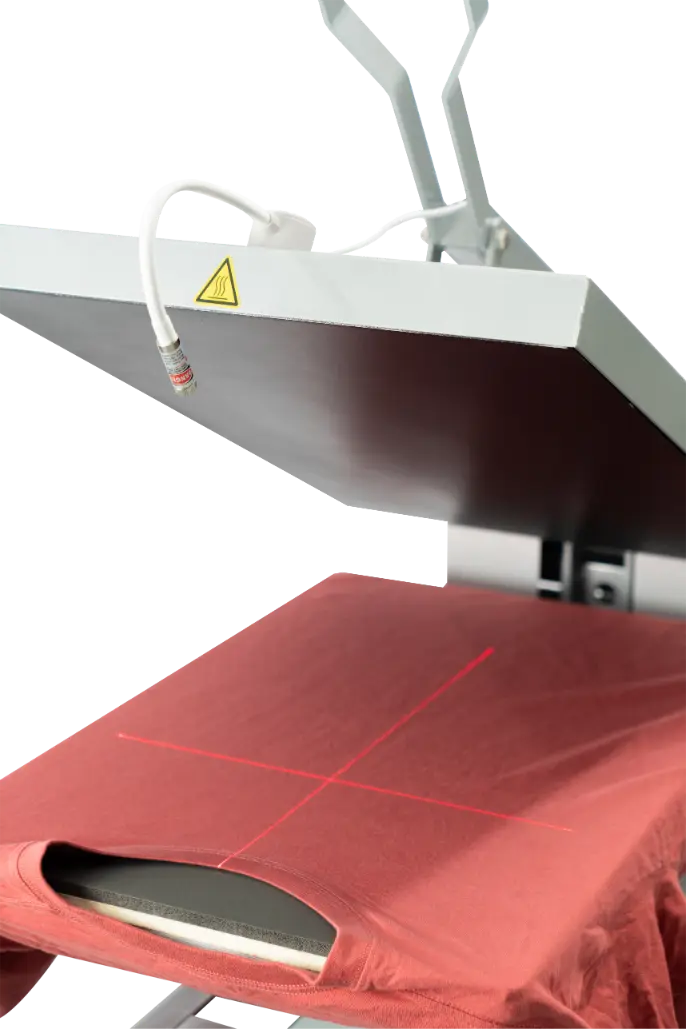

Infrared Positioning
Infrared positioning, 360° rotation, very convenient.

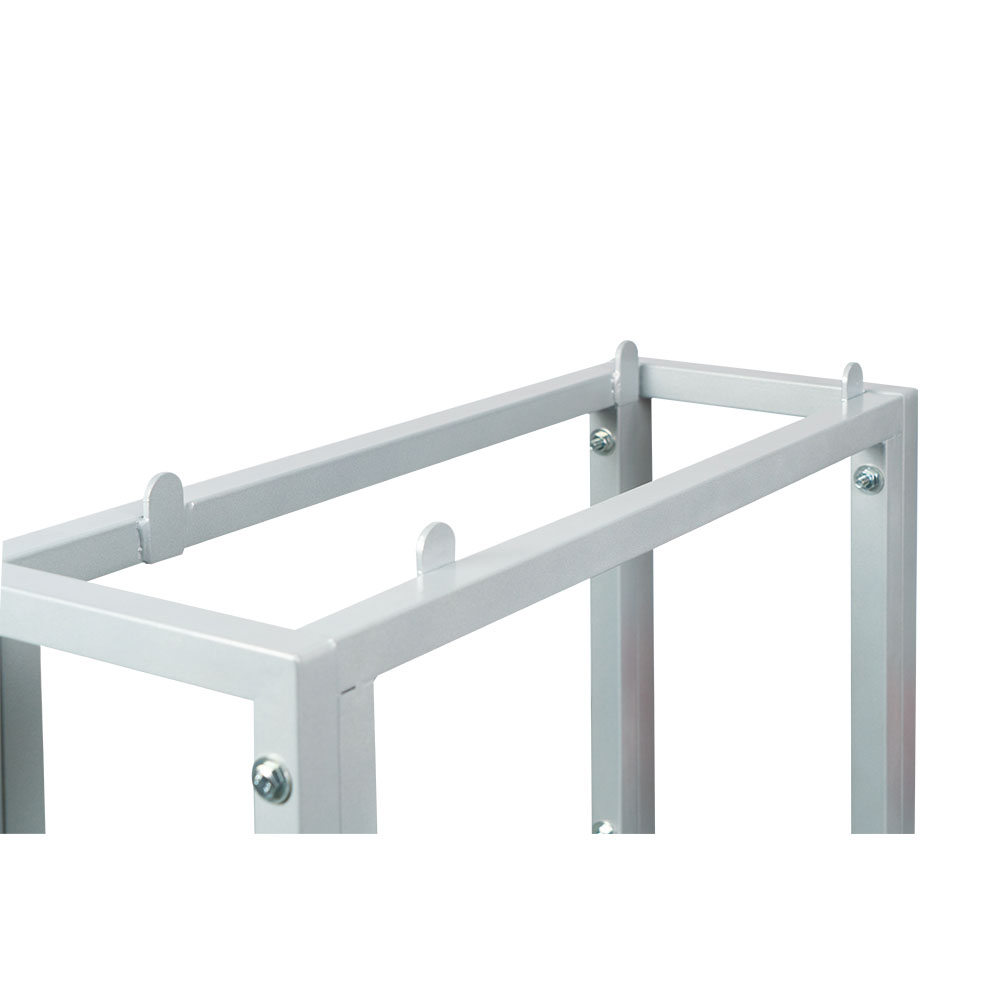

Frame and Universal casters
With a base frame and universal casters for more stable printing and easy movement.
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Aluminum sheet | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
