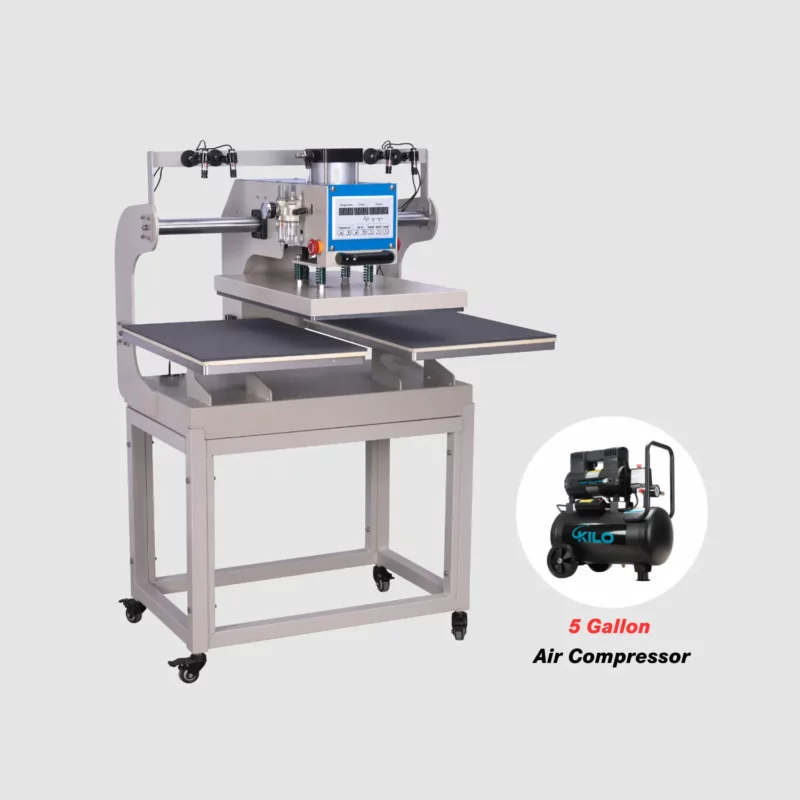

16×24 Pneumatic Up-sliding Dual Platen Heat Press Machine Technical Parameters
| Product Name: | Dual Platen Heat Press 16×24 Machine |
| Main Material: | Aluminium |
| Voltage(V)/Plug Size: | 110V/60HZ (US standard 3-prong power plug) |
| Power(KW)/Current: | 2 KW/18A (General 110V home voltage and 20 A home current) |
| Temperature(℉): | 0-570 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 306.5 |
| Packing Size(in): | 42.5” x 33.9” x 32.3” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16” x 24” (40 x 60cm) |
5 Gallon Air Compressor
| Horsepower: | 1.2HP |
| Tank Capacity: | 5 Gallon |
| Voltage(V): | 110/60Hz |
| Power(kW): | 800W |
| Max Pressure | 8 Bar |
| Air delivery: | 60L / Min |
| Speed: | 1680r / Min |
| Noise Level: | 65dB |
| Special Feature: | Automatic Shut-Off Recommended Uses For Product: Auto Repair, Tire Inflation, Spray Painting, Woodwork Nailing |
Features
- Advanced 16×24 Design: Experience high-efficiency printing with our dual platen, up-sliding pneumatic heat press machine, perfect for large format sublimation tasks.
- Precision Infrared Positioning: Achieve flawless alignment every time thanks to the infrared laser positioning system, a unique feature in this professional-grade 16×24 heat press.
- Digital Control & Automation: This automatic heat press boasts a big LCD display with integrated controls for temperature, time, and counter settings to streamline your printing process.
- Versatile Printing Capabilities: Whether you’re pressing pure cotton,polyester, chemical fiber, pearl board, metal pendant, mouse pad, glass, ceramic, or complex materials, this 16×24 heat press can handle a wide range of applications with its customizable settings.
- Heat Retardant Construction: Our 16×24 heat press machine is built with heat retardant materials, ensuring safety during high-temperature operations and prolonging the life of the equipment
- Heat Resistant Components: Featuring heat resistant platens and other critical components, this press maintains consistent performance even under prolonged use at high temperatures, making it ideal for commercial and industrial applications.
- 【LIFETIME SUPPORT】: Join our exclusive “KILO HEAT PRESS” community for instant technical support, creative ideas, and lifetime after-sales service. Our growing family of heat press professionals is here to help you succeed!
When fatigue hits, press play? No way! Get Kilos Dual Platen Auto Press today!
Dual Platen Efficiencys
Each platen operates independently, allowing for continuous printing; while one item is being pressed, the other can be set up, effectively doubling your productivity.
Laser positioning
This Dual Platen heat press stands out with its infrared positioning, a sophisticated feature rarely found in compact models.
This system ensures precise placement of transfers.
Pneumatic Pressure System
The pneumatic pressure system delivers consistent, This feature ensures high-quality, uniform transfers on a variety of materials.
Programmable Digital Control
You can program and monitor temperature, pressure, and timing with precision, making complex printing tasks simpler and more reliable.
Built-in air compress
Built-in oil-free compressor with stable output, low noise, easy mobility, and supports various pneumatic tools.
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Aluminum sheet | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |

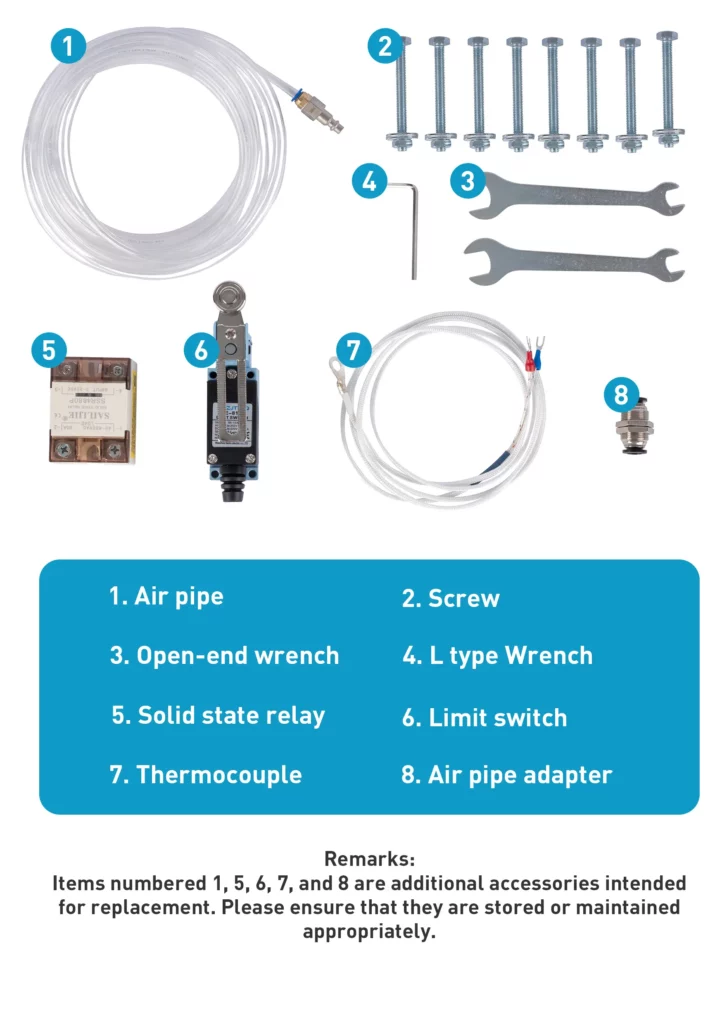

Accessories
FAQs
-
How does the dual platen design of the heat press 16×24 benefit my business?
Enhanced Productivity: The dual platen design of our 16×24 heat press significantly increases your productivity by allowing you to prepare one item while the other is being pressed. This cuts down on production time and increases output.
-
Is this 16×24 pneumatic dual platen auto heat press suitable for complex printing tasks?
Advanced Capabilities: The Dual Platen heat press 16×24 is designed to handle complex printing tasks with ease. Its large surface area is perfect for oversized garments or applying transfers over seams and zippers.
-
Can I use this heat press for sublimation printing on different types of substrates?
Sublimation-Ready and Versatile: This heat press 16×24 is fully equipped to handle sublimation printing on a vast array of substrates including textiles, ceramics, and metals. ensuring vibrant, long-lasting transfers on a variety of surfaces.
-
How user-friendly is the interface, especially for precise?
Intuitive Digital Interface: Dual Platen heat press features a digital control panel for precise adjustments of temperature and pressure, which can be easily set according to the specific requirements of your projects.
-
What kind of customer support comes with the heat press 16×24?
Comprehensive Support: The Dual Platen heat press comes with a one-year that covers any manufacturing defects. Join our exclusive u0022KILO Heat Press Machineu0022 community for instant technical support, creative ideas, and U.S-based after-sales support.
