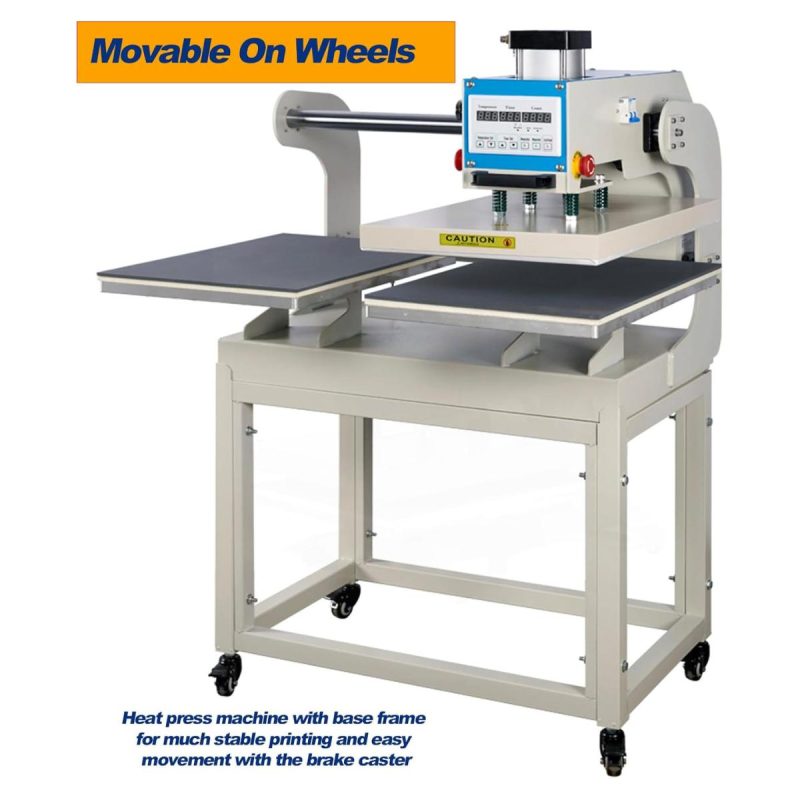

16″x24″ Dual Platen Pneumatic Heat Press Machine
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 306.5 |
| Packing Size(in): | 42.5” x 33.9” x 32.3” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16” x 24” (40 x 60cm) |
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Metal pendant | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
Features
Dual Platen Efficiencys
Each platen operates independently, allowing for continuous printing; while one item is being pressed, the other can be set up, effectively doubling your productivity.

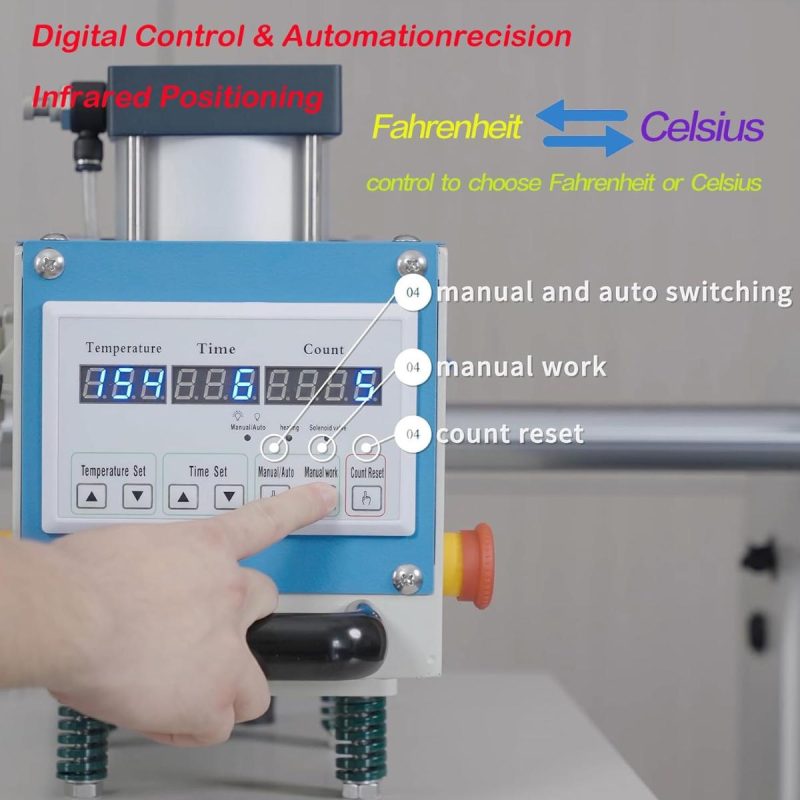

Programmable Digital Control
You can program and monitor temperature, pressure, and timing with precision, making complex printing tasks simpler and more reliable.

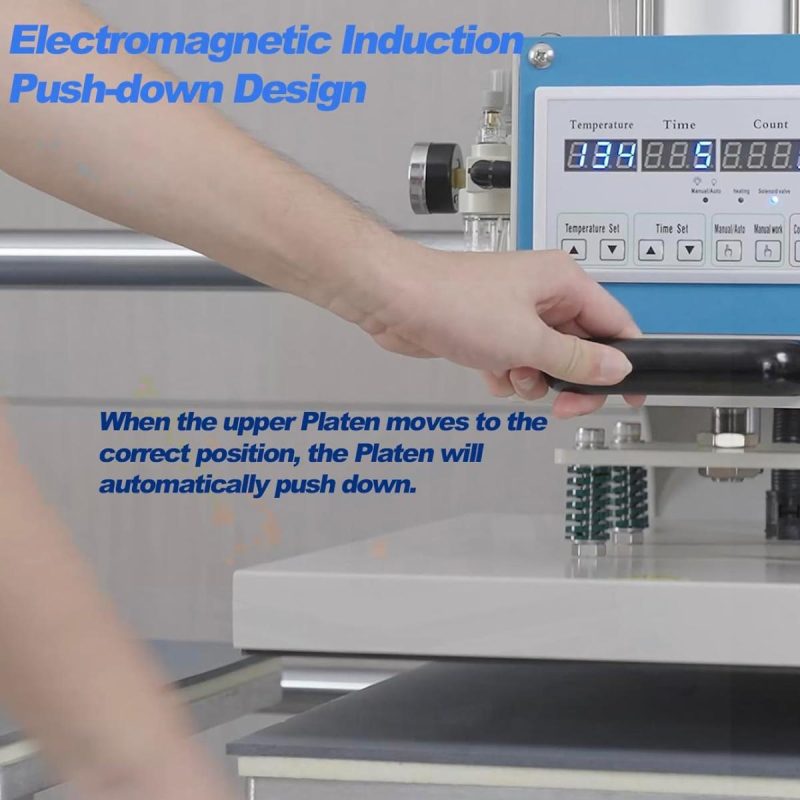

Pneumatic Pressure System
The pneumatic pressure system delivers consistent, This feature ensures high-quality, uniform transfers on a variety of materials.
Works great. Very easy to use and dual platforms help increase our productivity.
Been in this biz for years, and this is the best press I¡¯ve used. Infrared alignment is spot on, pneumatic action saves me from pushing down manually for hours. Support is solid too¡ªwhen one regulator was damaged, they overnighted a replacement
I absolutely love this press¡ªauto and manual modes give me flexibility depending on the job. The self-balancing pressure system and even heating across both platens make sure every transfer looks sharp.
This pneumatic heat press has been a huge upgrade for my business! The dual platen design lets me prep one garment while pressing another. The infrared positioning gives perfect alignment every time, and the temperature stays stable even under heavy use.
Quick delivery, fairly easy setup. No template for lasers and video they send when you ask for help isn’t in English. Press works well. It does smell funky when running.
