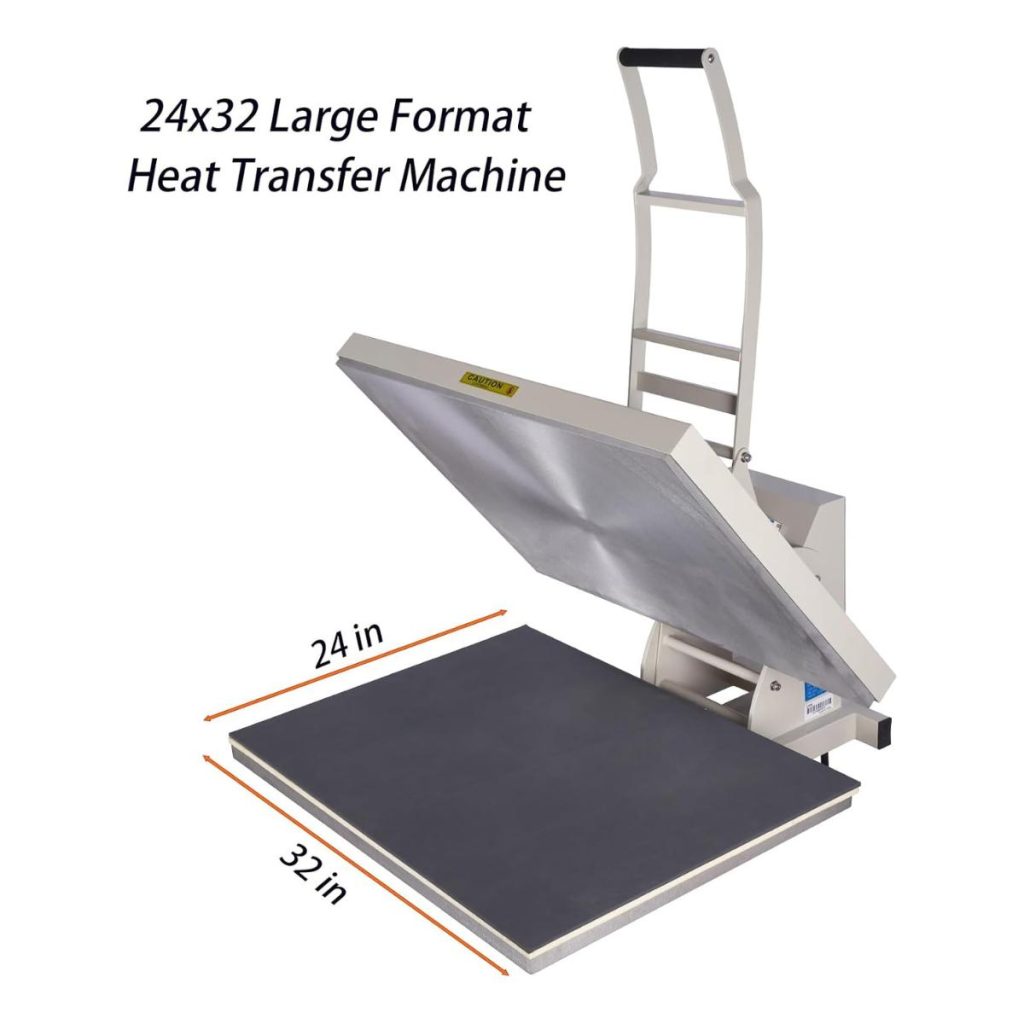

24″x32″ Large Format Manual Heat Press
| Voltage(V): | 110V / Single Phase |
| Power(KW): | 4.5 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 205.1 |
| Packing Size(in): | 40.9X33.1X20.9 |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 24 x 32” (60 x 80cm) |
Description

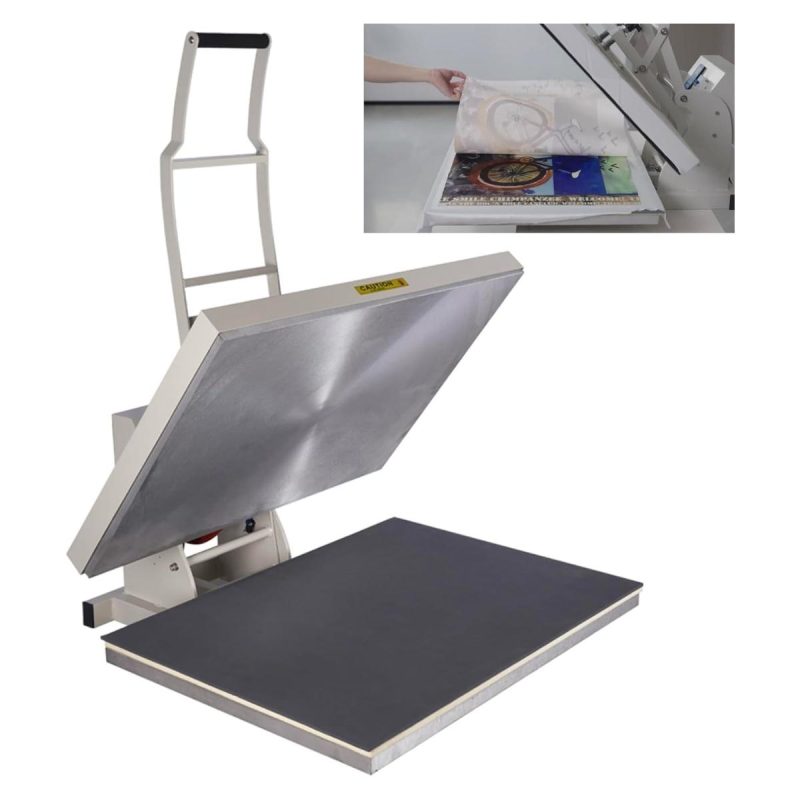

24×32″ Large Format Manual Heat Press Machine w/Double Pressure Knob for T-shirt
1. Heat press machine suitable for larger area heat transfer press operations
2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely
3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect
4. For T-shirts, mouse pads, license plates, magnetic material and more
5. Special high temperature cloth for hot stamping machine covered
6. Large format heat press machine is optional Infrared ray positioning
7. High accuracy of signal indication when press process is completed
Manual Heat Press Machine:
The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace; The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable; Full digital temperature and time display, temperature error(±2℃); Designed according to human engineering , machine is easy to operate with even pressure Open and close heating plate, easy to use Pressure is adjusted by connecting rod, the adjustment torque is small and the range is large. Large Format Heat Press Machine with Double Pressure Knob to Make Pressure More Uniform.
1. Vertical Type for Ready-to Wear Garments
2. Vertical Angle is 75°

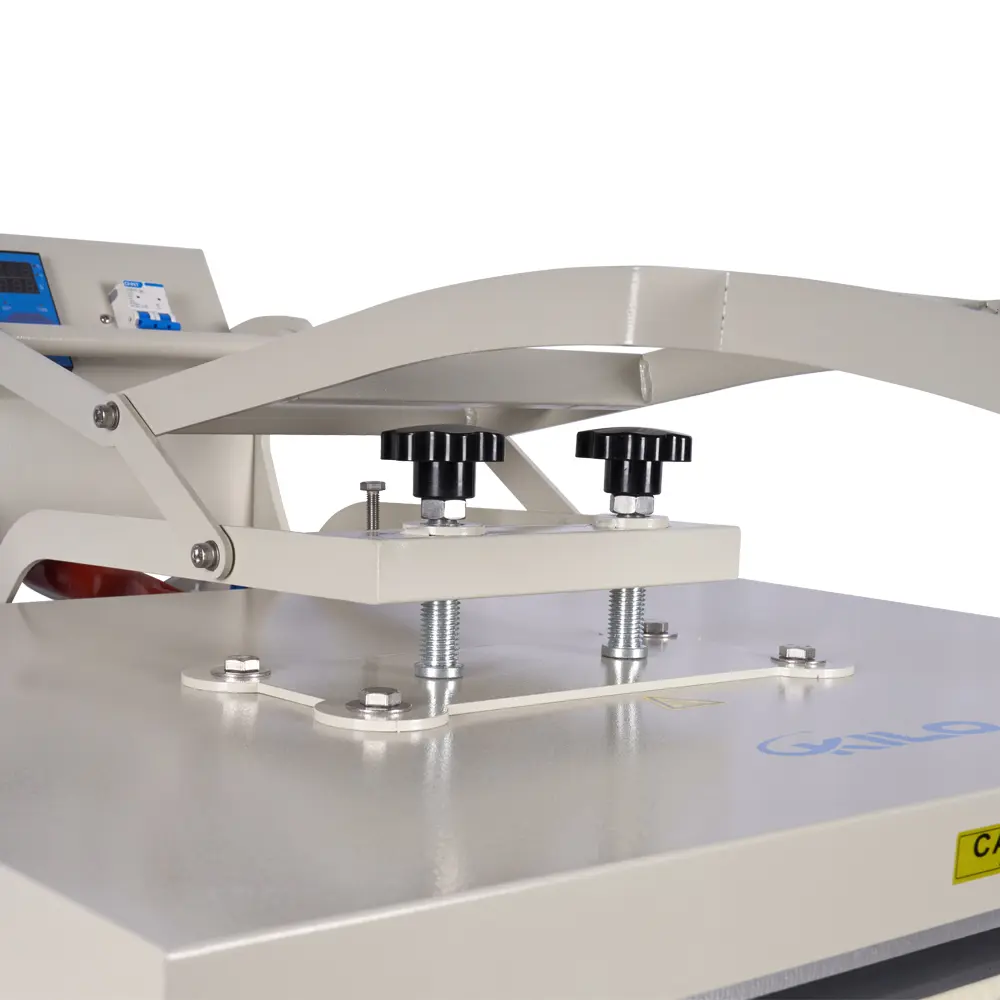

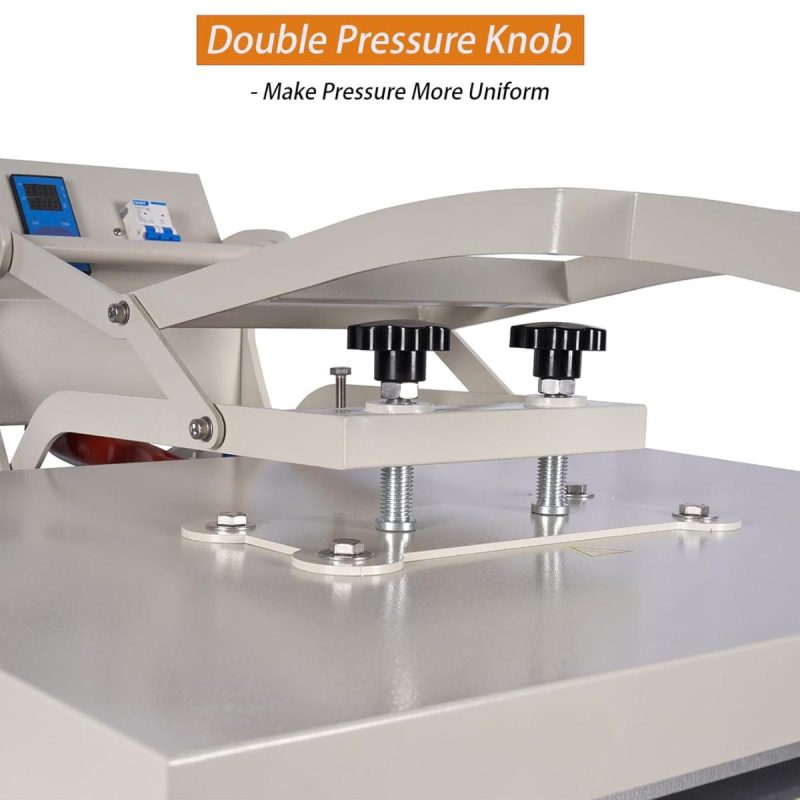

Double Pressure Knob
Large Format Heat Press Machine with Double Pressure Knob to Make Pressure More Uniform

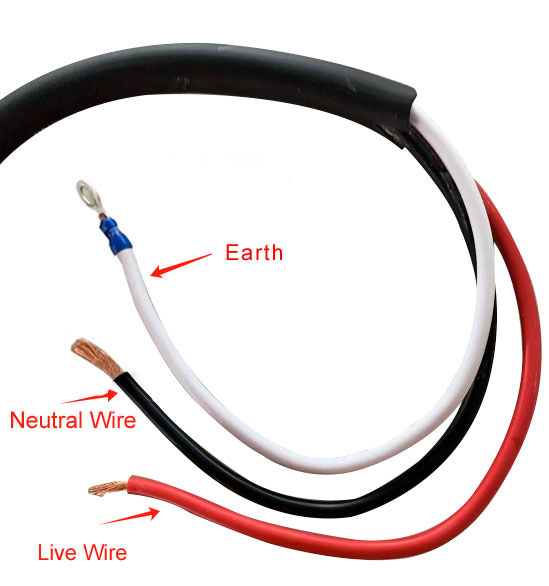

No plug
Different Charge Plug Can Be Available Depends on Customers Requirement
⚠️ Important Safety Notes:
- Professional installation recommended
- Must be hardwired – no plug connection
- Requires 40-50A dedicated circuit
- Ground wire required
- Follow local electrical codes
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Aluminum sheet | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
I already have their heat press, but I bought a smaller one. This time I upgraded and chose this 24×32. Their heat press is great for design studios and studio design products. At least it is very stable. If there is a problem, there are professionals to solve it for me. It makes me feel relieved, after all, it is such a big machine.
I¡¯ve been using this press for my T-shirts and mousepads, and I¡¯m very impressed. The pressure adjustment is smooth, and the temperature distribution is even. The high-temperature cloth on the heating plate keeps everything durable and efficient
This machine is a beast! The 4500W power ensures the heating is quick and uniform. I love how easy it is to switch between Celsius and Fahrenheit, and the pressure adjustment is precise, which makes working on larger items so much easier
I love the heat press, but I ordered the 110w unit so I could plug it in to existing wiring. They did not tell me until after it kept blowing the breaker that it needed to be hard wired to a 50 amp breaker. It cost me as much as the price of the unit to get it wired.
Highly recommend this heat press! The large 24¡Á32 plate is a game-changer for my custom T-shirt business. The durable build and high precision of the temperature and pressure make it reliable for even the most detailed transfers.
