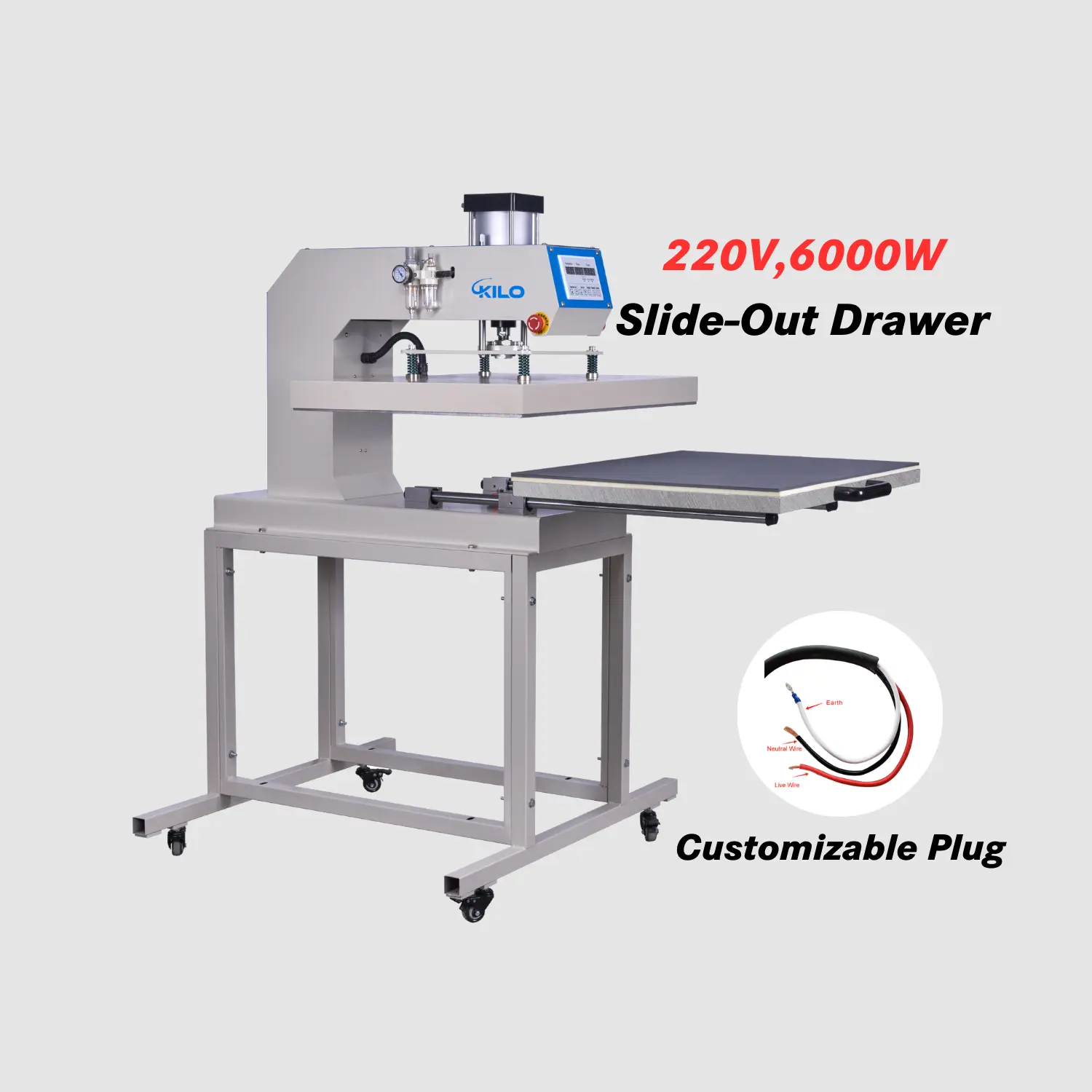

24″x32″ Large Format Pneumatic Slide Out Drawer Heat Press Machine
| Voltage(V): | 220V single phase |
| Power(KW): | 6 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 403.5 |
| Packing Size(in): | 45.3” x 32.3” x 36.6” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 24″ x 32” (60 x 80cm) |
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Metal pendant | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
Air Compressor Details: (Need buy extra)
| F.A.D/Max Pressure(m³/Min/MPa): | 2.2/0.8 |
| Lubricant Oil (Liter): | 10 |
| Voltage: | 110V/60HZ, 220V/single phase |
| Power (KW): | 15 |
| Starting Mode: | Variable Frequency Start |
| Outer Pipe Diameter (inch): | Rp3/4 |
FAQs
-
What model of Air Compressor is required for this Heat Press?
The required Air Compressor specifications are: 6 Gallon, Oil Free Small Electric Pancake Air Compressor, Max 150 PSI.
-
Are there spare parts for the machine available in the US?
We stock all spare parts for our Heat Press machines, such as silicone pads, in our local US warehouse. If you need a replacement, please feel free to message us at any time.
-
The machine requires 220V and comes without a plug. How does the machine connect the power?
This machine doesn’t come with plug because the output current is too big. So you need to connect three lines to main fuse box directly ( live wire to the live wire, the neutral wire to the neutral wire, and the ground wire to the ground wire.)
-
Does the machine provide even heat distribution across the entire surface?
Yes, This heat press features a powerful 6000W heating element that ensures rapid and even heat distribution across the 24×32 inch surface. Reducing errors and waste, which helps in quickly recovering your costs.
The slide-out drawer design makes operation safer – no more worrying about burns. The pneumatic system provides even pressure, making my large format prints perfect from edge to edge. The digital control panel is super intuitive, allowing precise temperature and timing settings for different materials.
We had a bunch of different challenges ordering from Kilo. But through all of it they always responded and helped me all the way through everything. The machine itself is working well with almost no adjustments. Kilo thank you for all the help.
This transfer press works very well. It is a huge upgrade from what we were using before. It is a very well built commercial style press and of the highest quality. We ordered one that possibly got damaged in transit, and contacted the seller, who had very good communication, and ended up completely replacing the unit. They stand behind their product. Buy with confidence!
With 4500W power and a spacious pressing area, it handles multiple items or large designs with ease.The digital touch screen ensures precise control, while the durable construction promises longevity. Perfect for t-shirts, mouse pads, and more, this versatile machine is a valuable addition to any crafting setup.
