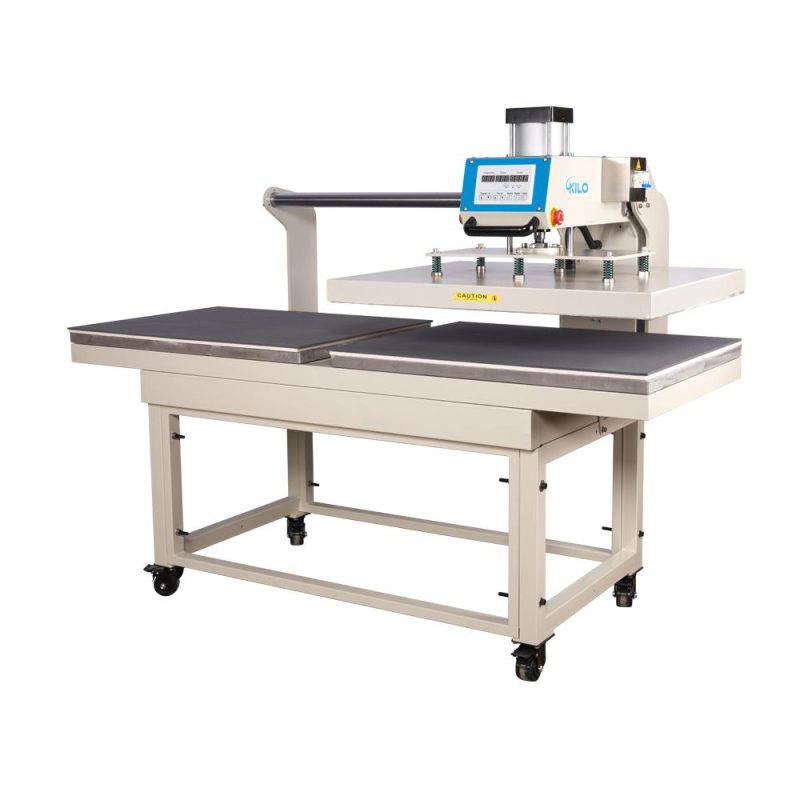

24″x40″ Large Format Pneumatic Heat Press Machine with Dual Platen
| Voltage(V): | 220V/ single phase |
| Power(KW): | 7 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 396.9 |

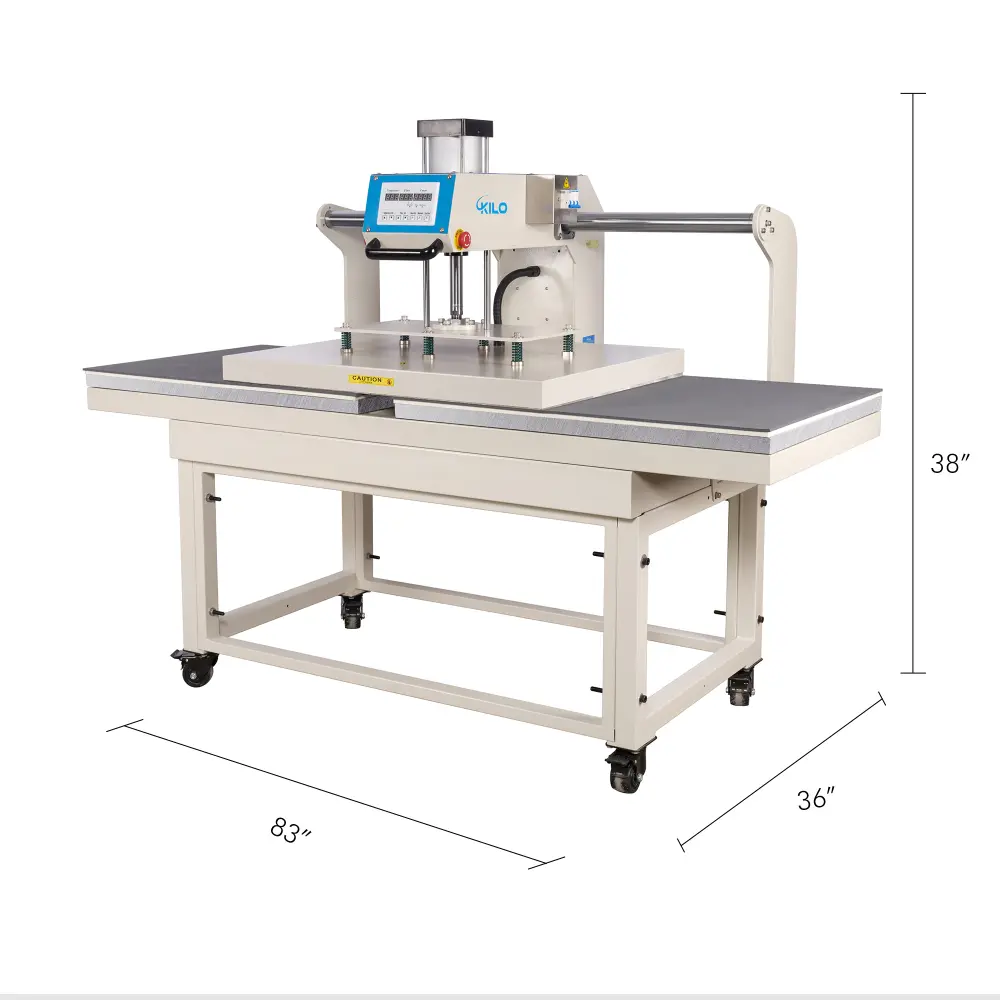

| Packing Size(in): | 83.7” x 36.2” x 38.4” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 24″ x 40” (60 x 100cm) |
Features
【PROFESSIONAL GRADE DESIGN】: Oversized 24″x40″ dual platen design with pneumatic operation and sliding mechanism for efficient high-volume production. Premium aluminum construction with integrated heating elements ensures durability and consistent results.

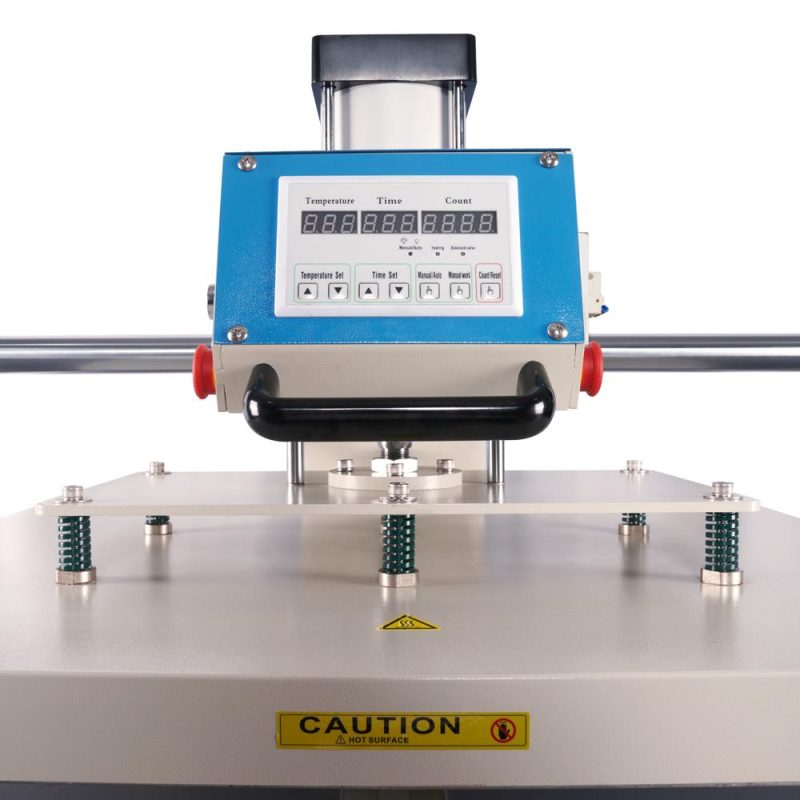

【ADVANCED DIGITAL CONTROL】: Full digital LED display control panel for precise temperature (up to 428℉), time (1-999s), and counter settings. High-accuracy completion signal ensures perfect results every time.

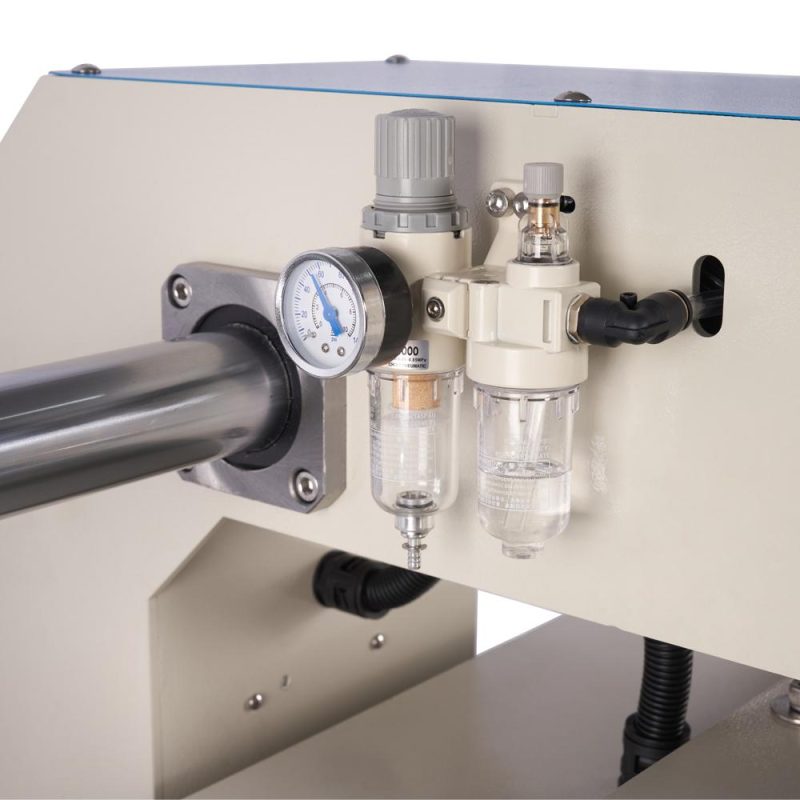

【VERSATILE APPLICATIONS】: Perfect for various materials including cotton, polyester, metal, ceramics, mousepads, and more. Adjustable pressure up to 10 bar with 2.36″ thickness capacity accommodates diverse products.
【PREMIUM HEATING TECHNOLOGY】: Die-cast aluminum 7cm thickness heating plate with integrated 16 group heating pipes provides rapid, uniform heat distribution. Special high-temperature cloth covering and 6MM silicon mat with 1CM sponge ensure even pressure.
【STABLE & CONVENIENT】: Heavy-duty frame with brake casters for stability and easy movement. Parallel bearing system enables smooth sliding operation between stations for increased productivity.
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Metal pendant | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Key ring pendant | 100s | |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
