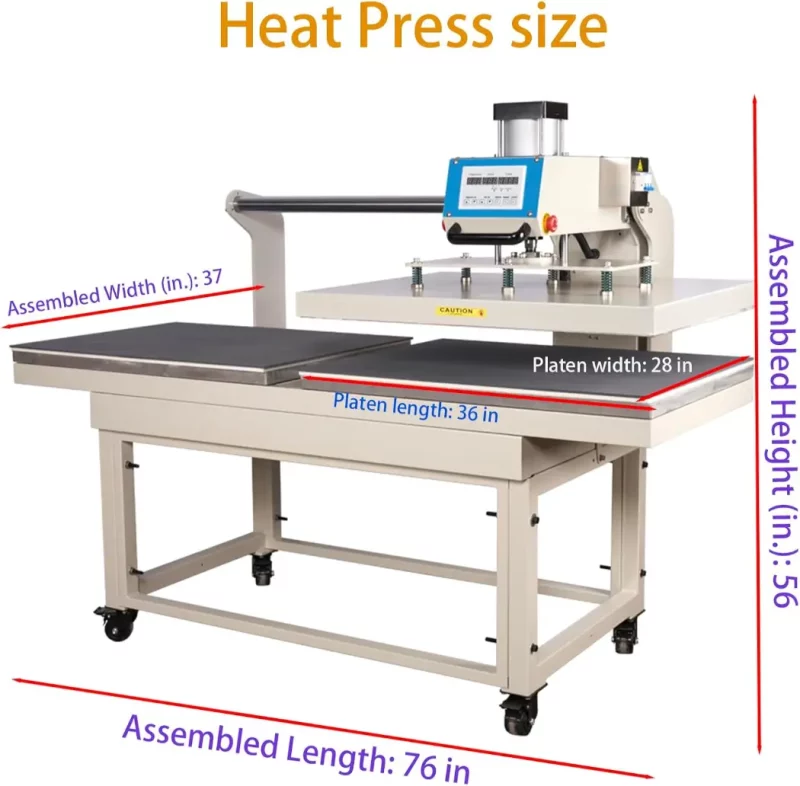

28″x36″ Large Format Pneumatic Dual Platen Heat Press

Original price was: $3,348.00.Current price is: $3,018.00.

-10%
(2 customer reviews)
Platen Size
16x24 Dual Platen
20x28 Double Station
24x32 Slide Out Drawer
24x40 Large Format
28x36 Large Dual
Custom Platen
Add to Cart
28"x36" Large Format Pneumatic Dual Platen Heat Press
28"x36" Large Format Pneumatic Dual Platen Heat Press
$3,348.00 Original price was: $3,348.00.$3,018.00Current price is: $3,018.00.

✅ Pickup available at CA warehouse
Usually ready in 1-2 days
View address

  • Arrival in 7-15 Business Days.
  • 30-day Easy Returns, 1 Year Warranty.
  • Pickup available at CA GA NJ TX.
  • Miami After-sale Team Support.

Double-station sliding pneumatic heat stamping machine with adjustable heating plate lifting speed and cylinder pressure (0-10 kg), to achieve accurate control. Suspended U-shaped bottom plate design, the mold can be replaced easily. The lower aluminum table can slide left and right, which can realize double operation and higher efficiency.

Features
  • Multiple time settings heat press machine
  • Full digital integrated display control, temperature, time, counting
  • Aluminum heat plate with die casting heating pipe
  • Sliding heat plate head design
  • Easily adjust the certain pressure
  • High accuracy of signal indication when press process is completed
  • 0-140psi pressure adjustable range can process a wider range of products
  • Powered by an air compressor ( not included)
28"x36" Large Format Pneumatic Dual Platen Heat Press
28″x36″ Large Format Pneumatic Dual Platen Heat Press
$3,348.00 Original price was: $3,348.00.$3,018.00Current price is: $3,018.00.

Get Your Exclusive Offer

Have questions about this model?
Leave a message and we’ll reply within 12 hours.

Request a call back

Fill out the form below to get a free call in 24hours.

28″x36″ Large Format Pneumatic Heat Press Machine

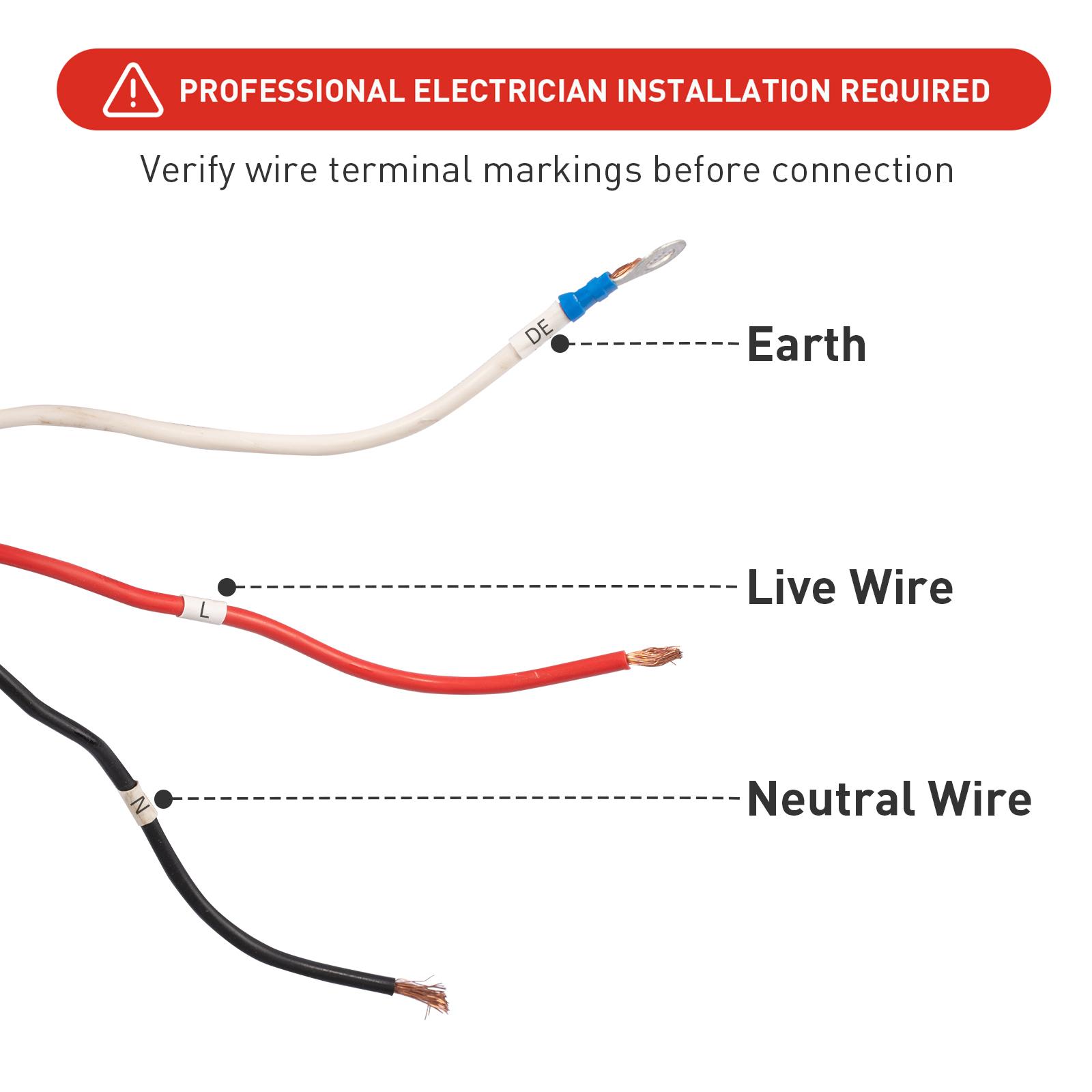

Voltage(V):220V/ single phase
Power(KW):7
Temperature(℃):0-299
Delaying time(S):1-999
G.W.(LB):396.9
Packing Size(in):76.8” x 37.4” x 37.45”
Accept Thickness:Max. 2.36” Thick Items
Range of Application:Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:28″ x 35” (70 x 90cm)

Time and Temperature Requirements of Different Materials

MaterialTimeTemperature
Pure cotton15s-25s356℉-428℉ (180℃-220℃)
Polyester40s356℉ (180℃)
Chemical fiber10s-40s302℉-356℉ (150℃-180℃)
Pearl board60s-100s356℉ (180℃)
Metal pendant60s356℉ (180℃)
Mousepad50s374℉ (190℃)
Vitrolite180s392℉ (200℃)
Key ring pendant100s
Ceramics180s356℉-428℉ (180℃-220℃)

Features
