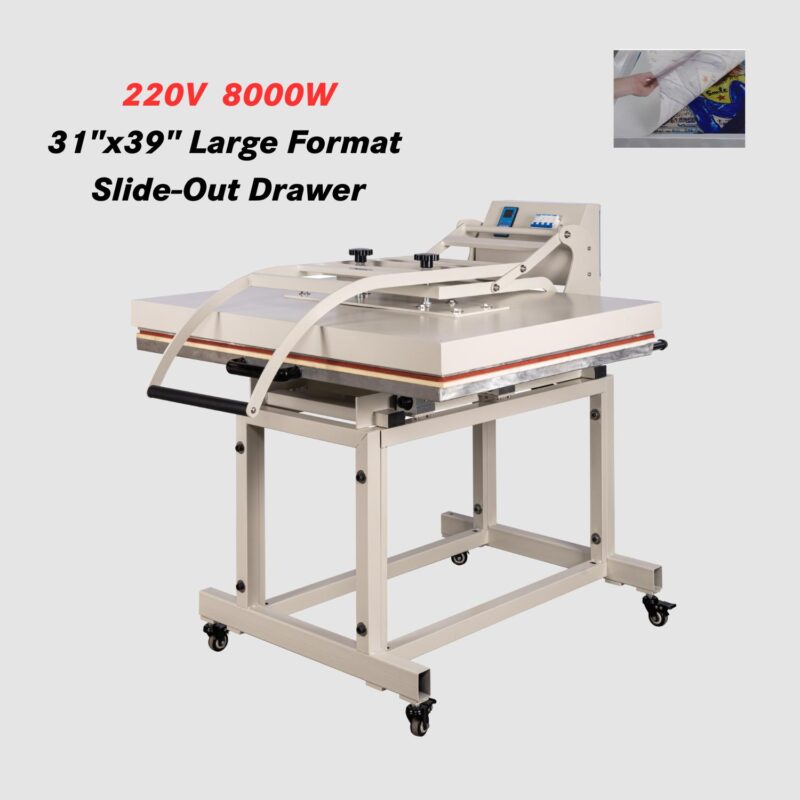

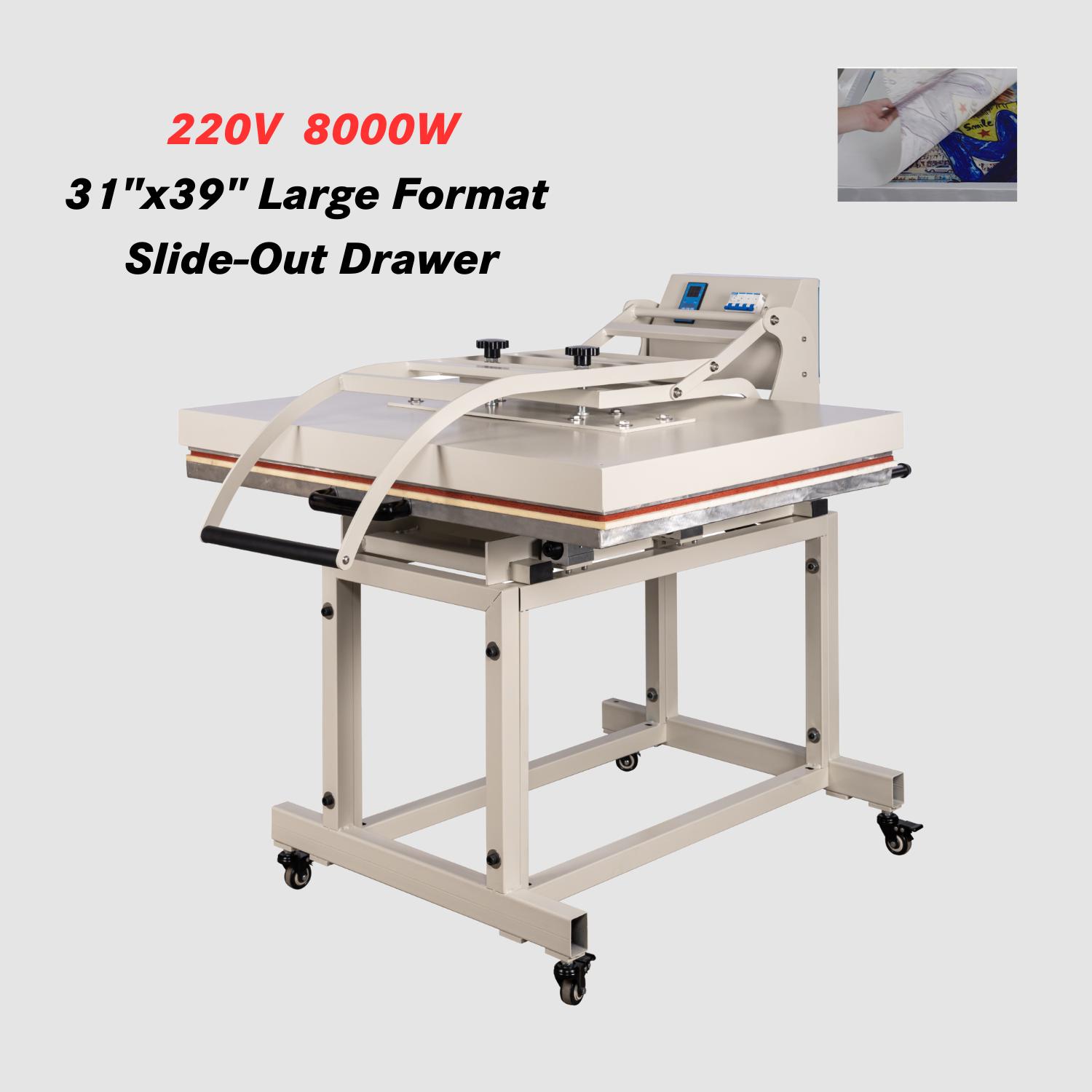

31″x39″ Large Format Manual Clamshell Heat Press Machine with Slide Out Drawer
| Voltage(V): | 220V, 50Hz, 1P, 40A |
| Power(KW): | 8KW |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 469.67 |
| Packing Size(in): | 54.3” x 42.1” x 25.4” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |

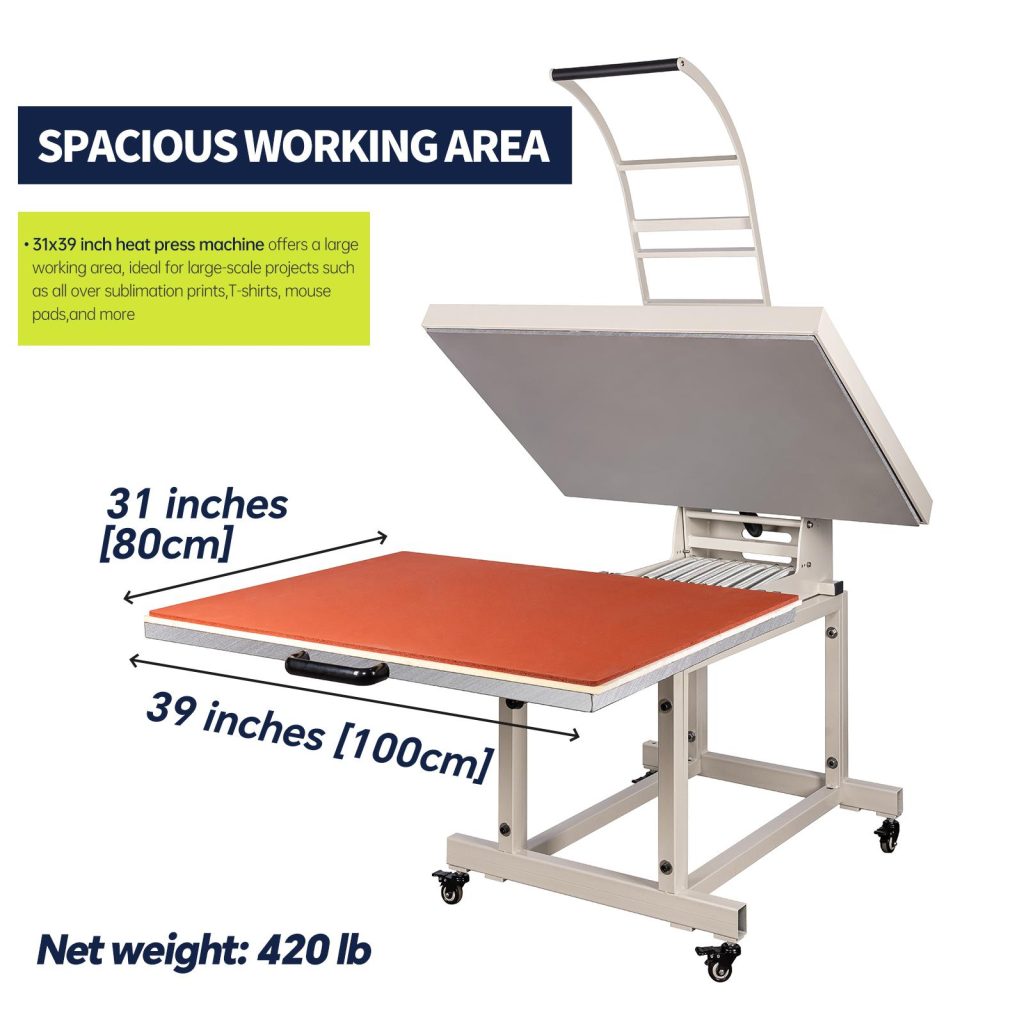

| Heat Plate Size: | 31″ x 39” (80 x 100cm) |
Features
This 31×39 large format high-pressure heat press machine with smart meter can transfer patterns onto fabrics like cotton, linen, chemical fabric through heat transfer technology. Heat treatment of Silk Screen Printing, glue, foam printing can also be achieved by this machine. Color code, portrait photo, landscape pictures and other patters also can be removed onto vitrolite and metalplate which is especially suitable for making medals, commemorative card, portrait of the deceased, T-shirt with signs. Its great virtue is economic and practical.
- The heat press machine is 220V,8000W (No Plug)
- Easily adjust the heat press machine certain pressure
- Best selling heat press model for heat transfer and sublimation
- The machine has a matching stand and wheels
- Large format die cast aluminium base plate
- Special high temperature cloth for hot stamping machine covered
- Heat press machine used for cloths Sublimation
- High accuracy of signal indication when press process is completed
- The bottom plate can be pulled out, which provides more operating space and is safer
31in x 39in Large Format Manual Operation Hand Force Textile Thermo Transfer Heat Press Machine

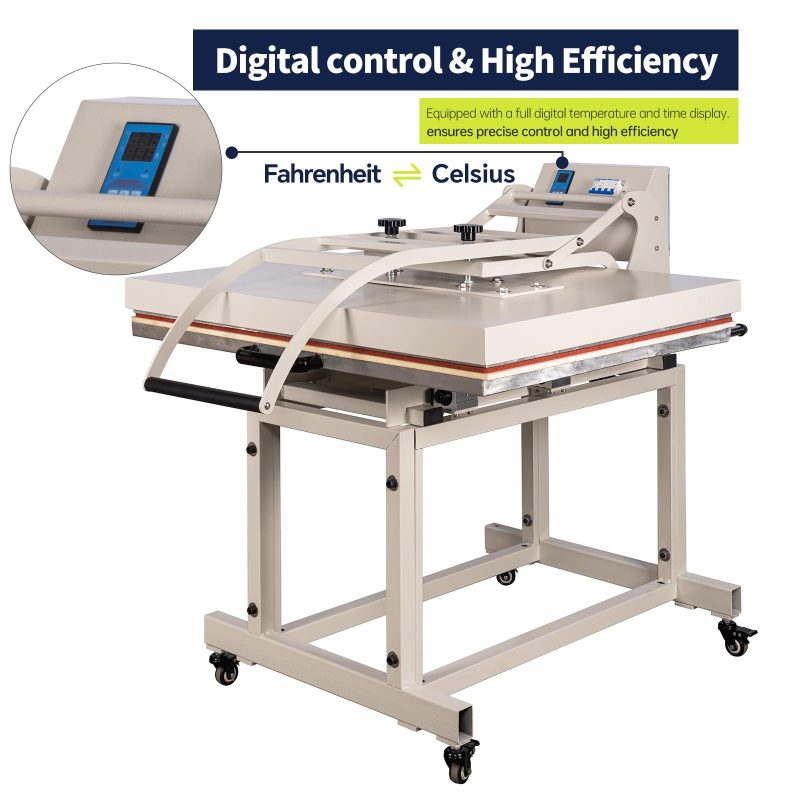

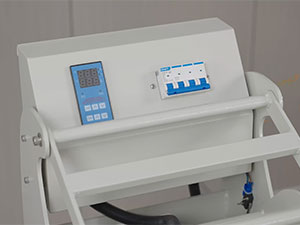

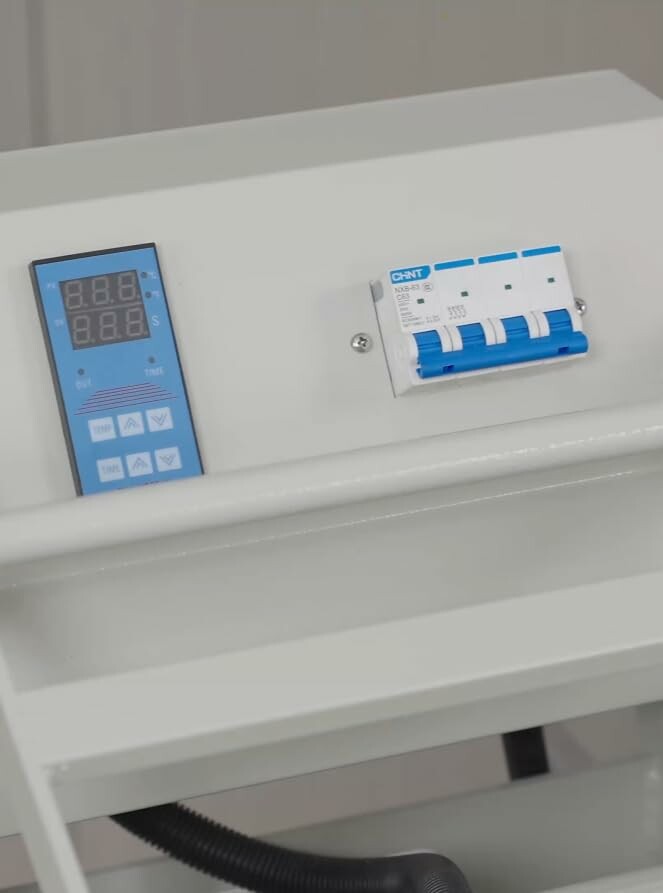

Advanced Digital Control
Achieve perfect results every time with our full digital temperature and time display. The easy-to-use interface allows for precise adjustments.

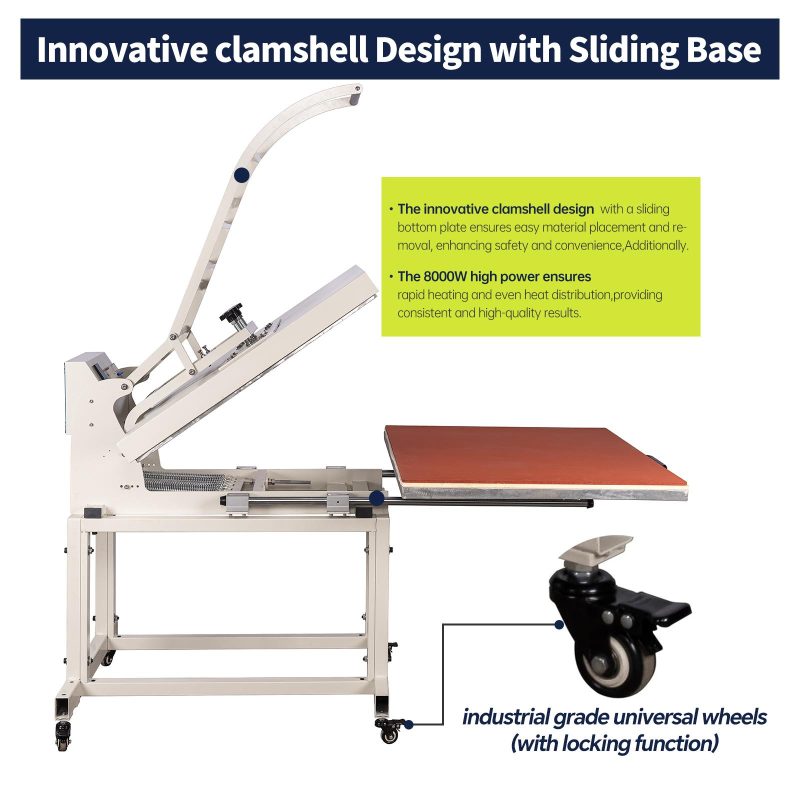

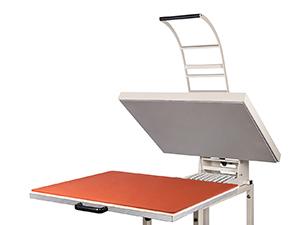

Efficient Clamshell Design
This innovative clamshell design with a sliding base ensures easy material placement and removal. optimizing your workflow.
Versatile Applications
From T-shirts to ceramics, this machine handles a variety of materials with ease. Perfect for allover sublimation and heat transfer projects.

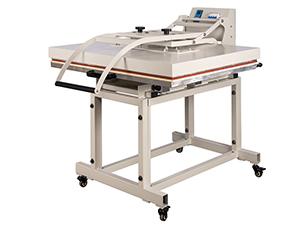

Robust ＆ Reliable Construction
Built with a durable aluminum frame and high-temperature cloth, this heat press is designed to withstand heavy-duty use.
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Metal pendant | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
Warm Tips:
This 31x39inch heat press is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.
As the head of an advertising production studio, this hot press machine has completely solved the pain point of batch processing flags and banners for us! The temperature is uniform from edge to edge of the heating plate, and the embossed pattern is full of color without any blending or wrinkles on the edges. Even the gradually changing logo details are clearly restored, and the efficiency is more than three times higher than before when splicing with a small machine!The machine is labeled with an industrial grade configuration voltage of 220V, but it should be noted that the machine does not have a traditional plug, but is directly equipped with wiring terminals that need to be connected to an electrical box or professional distribution equipment. The heating speed is astonishingly fast, coupled with an adjustable air pressure rod, the pressure can be precisely controlled for both thin gauze flags and thick canvas banners. The fabric will not be crushed or leave marks, and the yield rate is almost 100%.I have been working continuously for more than 6 hours every day for two months, and the PTFE coating has not yellowed or peeled off. For businesses that require high-frequency processing of large-sized hot stamping, it is simply tailor-made!The customer service response was also very timely, repeatedly confirming the voltage and wiring method before purchasing, providing detailed graphic and textual guidance, and even helping to recommend compatible terminal models. Currently, there are no malfunctions in use. If you, like me, need to handle large-sized hot stamping for advertising materials and event arrangements, this one is definitely the right choice! Professional level design may require a bit of installation threshold, but the result is irreplaceable efficiency and quality, definitely worth investing in!
High-precision signal indication ensures that every operation is accurate. The design of sliding out of the base plate provides a larger operating space. The 8KW high power of the machine ensures a strong heating capacity and is highly efficient when handling large-area transfer printing tasks
In my printing shop, time is money, and the 8000W power of this press saves me several hours every day. The temperature rises very quickly! High power can maintain a constant temperature during continuous operation without waiting for reheating. The workflow has significantly accelerated, especially when dealing with thick polyester blended fabrics that require high temperatures. Value efficiency, this power is worth it.
