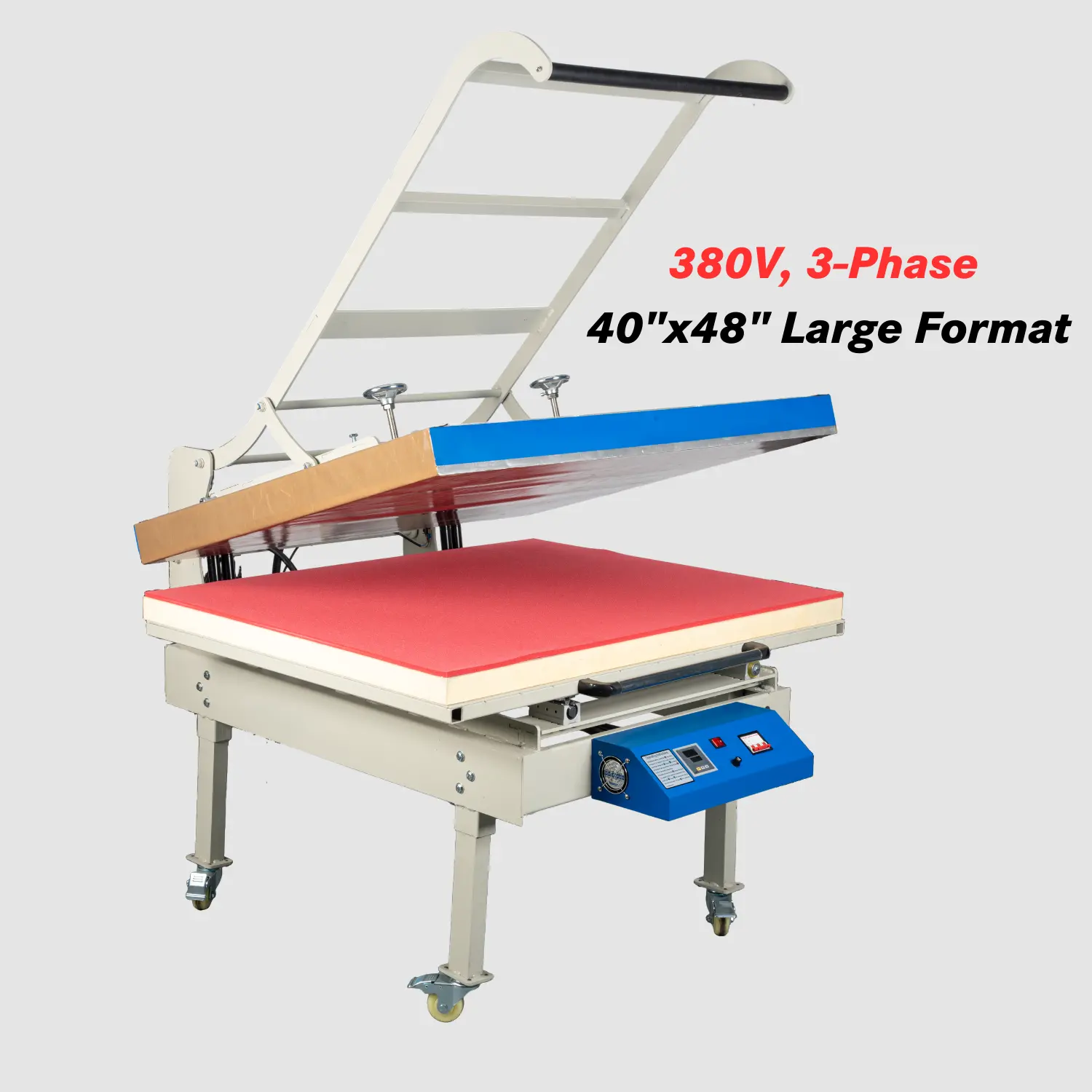

40″ x 48″ Industrial Manual Heat Press Machine with Slide-Out Drawer & Stand
| Voltage(V): | 380V, 3-Phase |
| Power(KW): | 10 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 463 |
| Packing Size(in): | 69” x 49” x 32” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 40″ x 48″ (100 x 120cm) |
Key Features & Benefits
- Slide-Out Drawer for Safety: The smooth-gliding lower platen pulls out completely, giving you a heat-free workspace to lay out garments safely and speed up your workflow.
- Precision Spool Heating: Say goodbye to cold spots. Advanced wiring technology ensures edge-to-edge temperature consistency across the massive 40″x48″ platen for flawless, vibrant transfers.

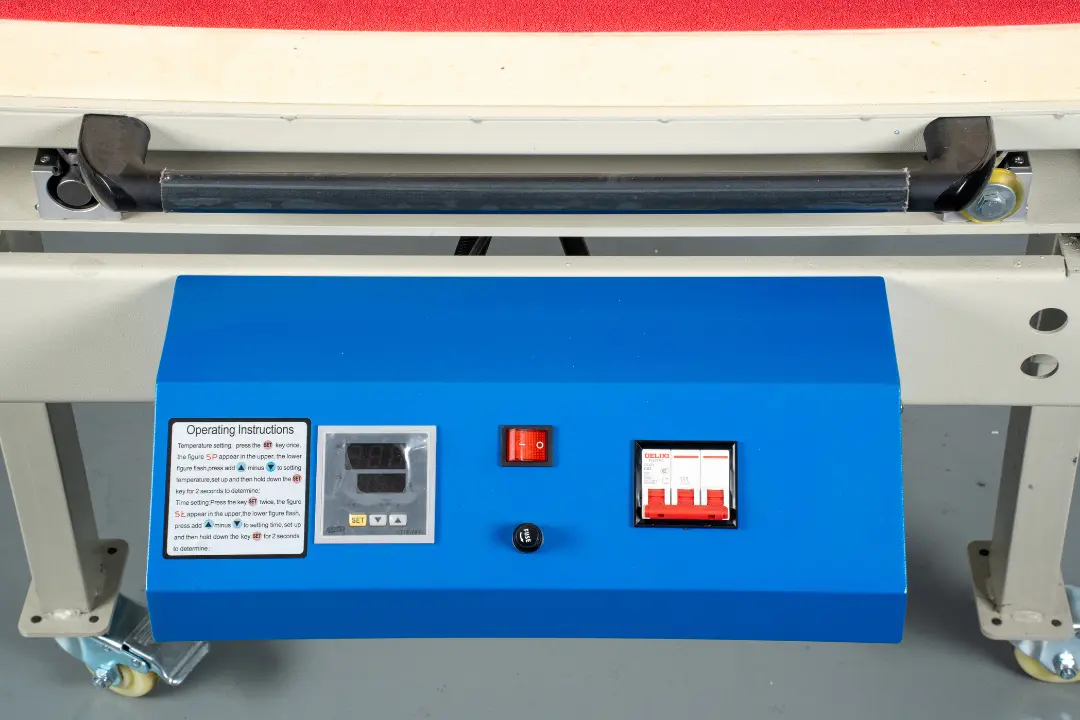

- Smart Digital Controls: Manage time and temperature effortlessly with the intuitive digital display, ensuring pinpoint accuracy and repeatable results.

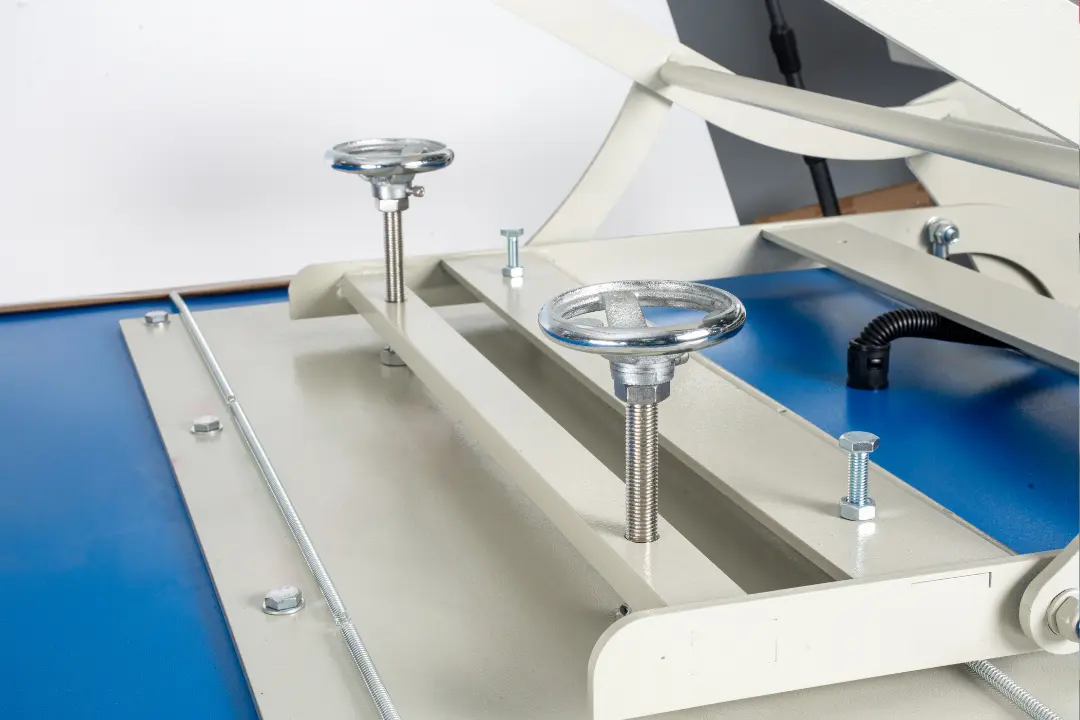

- Stepless Pressure Adjustment: A top-mounted spiral handwheel allows you to easily dial in the perfect pressure for any substrate, from thin t-shirts to thick ceramic tiles.
- Heavy-Duty Mobile Stand: Includes a robust base frame with lockable casters for rock-solid stability during operation and easy mobility when needed. A premium silicone pad is included for perfect pressure distribution.

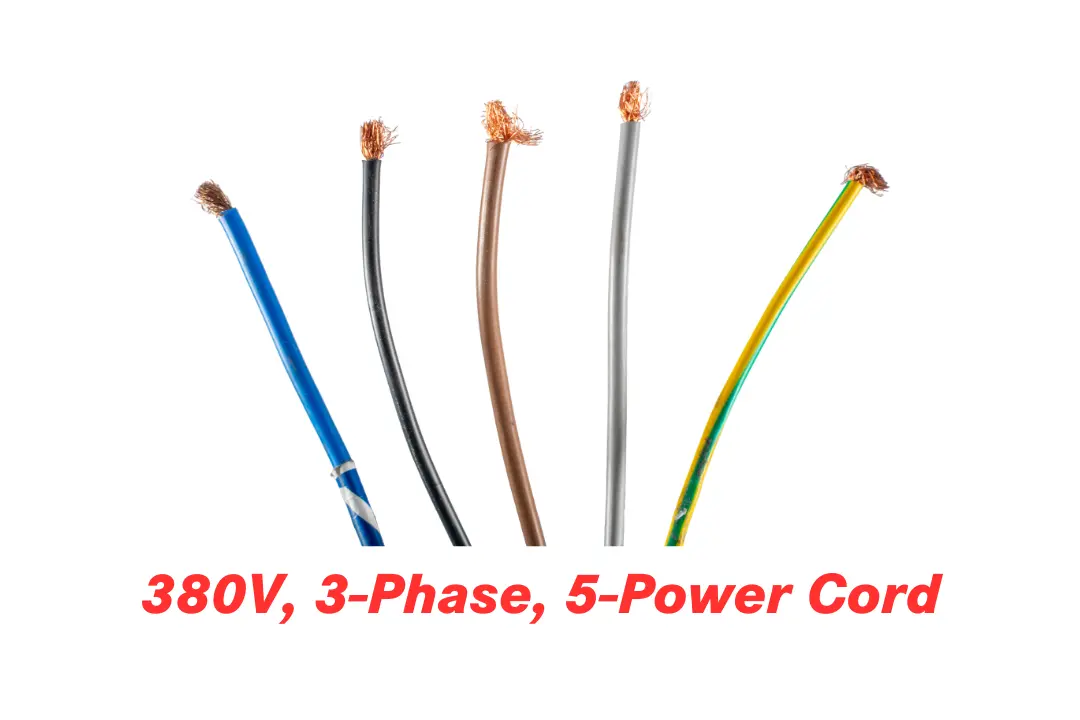

⚠️ Important: This is an industrial machine requiring 380V, 3-phase power (plug not included). Hardwiring by a certified electrician is required before use.
🚀 Quick Start Guide (How to Use)
Operating this large-format press is designed to be straightforward and safe.
- Power & Preheat: Ensure the machine is properly hardwired to a 380V power source by a certified electrician. Turn on the power switch and use the digital controller to set your desired temperature and time. Wait for the machine to fully heat up.
- Prepare Your Substrate: Pull the lower slide-out drawer completely forward. Lay your garment or blank material flat on the silicone pad, position your transfer paper, and secure it with heat-resistant tape.
- Press & Lock: Push the drawer back into place securely under the heating element. Pull down the top handle to lock the press closed. Use the top spiral knob to adjust pressure if needed.
- Release & Cool: Once the digital timer alarms, carefully lift the handle to open the press. Pull the drawer out and remove your finished product!
❓ Frequently Asked Questions (FAQ)
Q: Why doesn’t this machine come with a power plug?
A: Because this is an industrial-grade machine operating on a 380V power supply, it draws more power than a standard wall outlet can safely handle. It must be hardwired directly into your facility’s electrical breaker panel by a licensed and certified electrician.
Q: Is the machine hard to assemble?
A: The main heat press unit comes fully assembled. However, due to its massive size and weight, it ships via freight on a pallet. You will need to attach the heavy-duty stand with casters upon arrival. We highly recommend having a forklift or multiple people to help lift the main unit onto the stand safely.
Q: What materials can I press with a 40″ x 48″ platen?
A: This machine is incredibly versatile! It’s perfect for all-over sublimation on XXL garments, large aluminum photo panels (ChromaLuxe), custom flags, banners, oversized mousepads, doormats, and even thicker substrates like ceramic tiles or wood plaques (thanks to the adjustable spiral pressure).
Q: Does the slide-out drawer make a big difference?
A: Absolutely. When dealing with a massive 40×48 inch heating element, reaching under it to adjust a garment is dangerous. The drawer allows you to pull the workspace completely out into the open, giving you 100% safe access to perfectly align your transfers without the risk of burning your hands.
