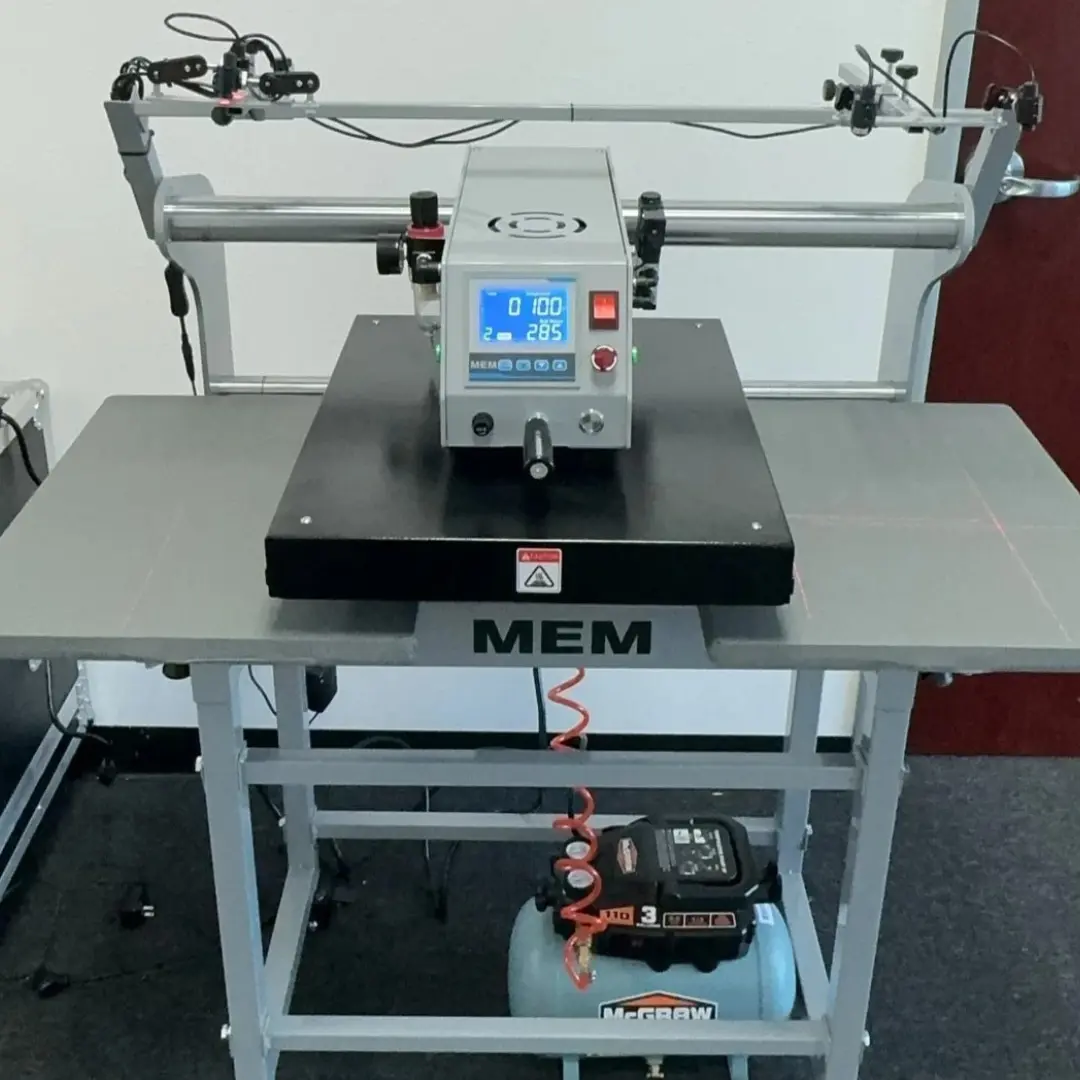

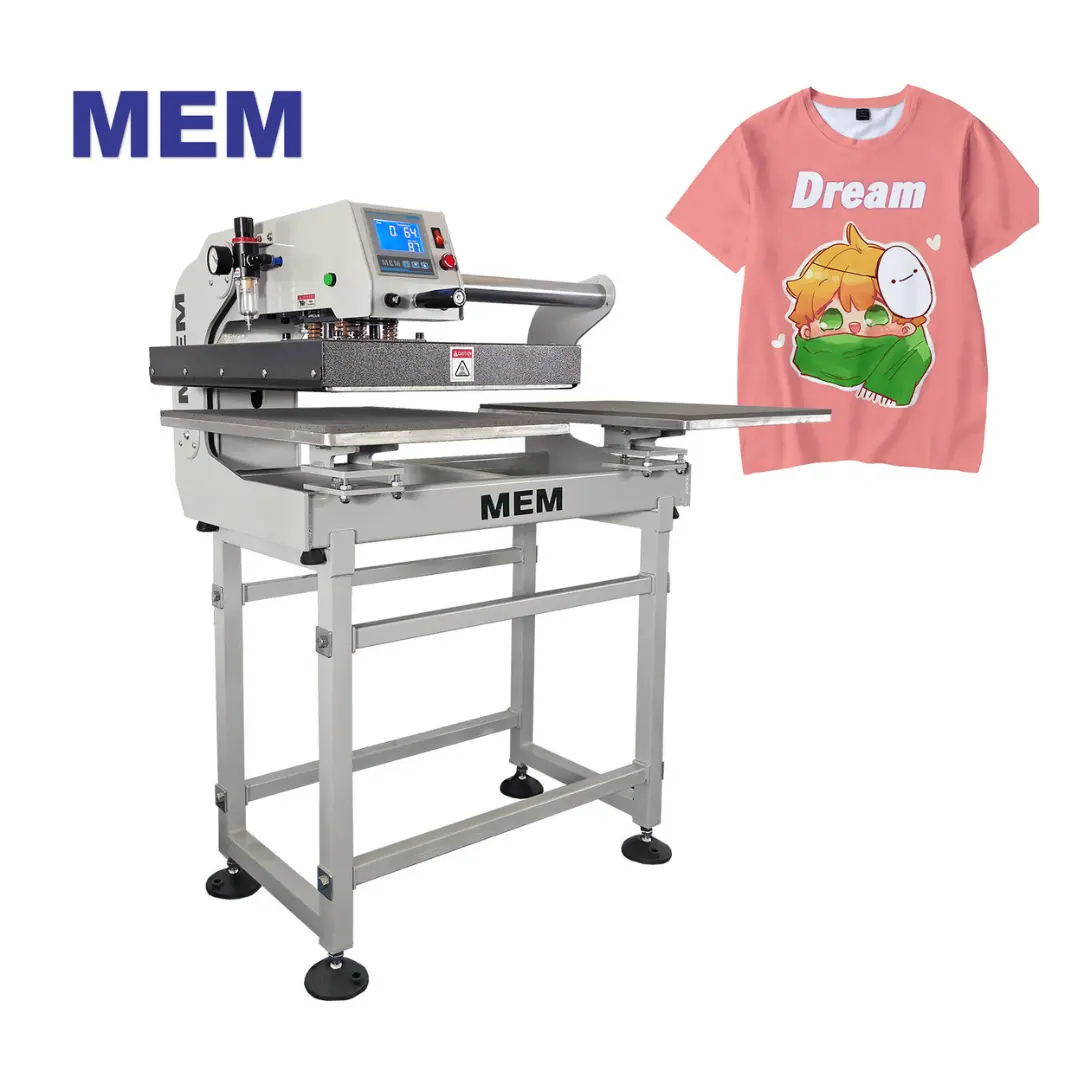

MEM 16″ x 20″ Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment System
Specifications:
| Molde: | TQ4050 |
| Voltage & Power: | AC110V±10%, 50/60Hz, 1800W, 17A |
| Temperature Range: | Up to 500°F (260°C) |
| Time Range: | 0-999 seconds |
| Heat Plate Size: | 16″ x 20″ (40cm x 50cm) |
| Unit Dimensions (LxWxH): | 41″ x 27″ x 46″ (105cm x 69cm x 117cm) |
| Shipping Dimensions (LxWxH): | 49″ x 31″ x 25″ (123cm x 77cm x 65cm) |
| Shipping Weight: | 320 lbs (145kg) |
Features
- Pneumatic dual-station design for medium to high-volume production
- Even pressure distribution on both the heat and bottom plates
- Semi-automatic & manual operation modes for versatility

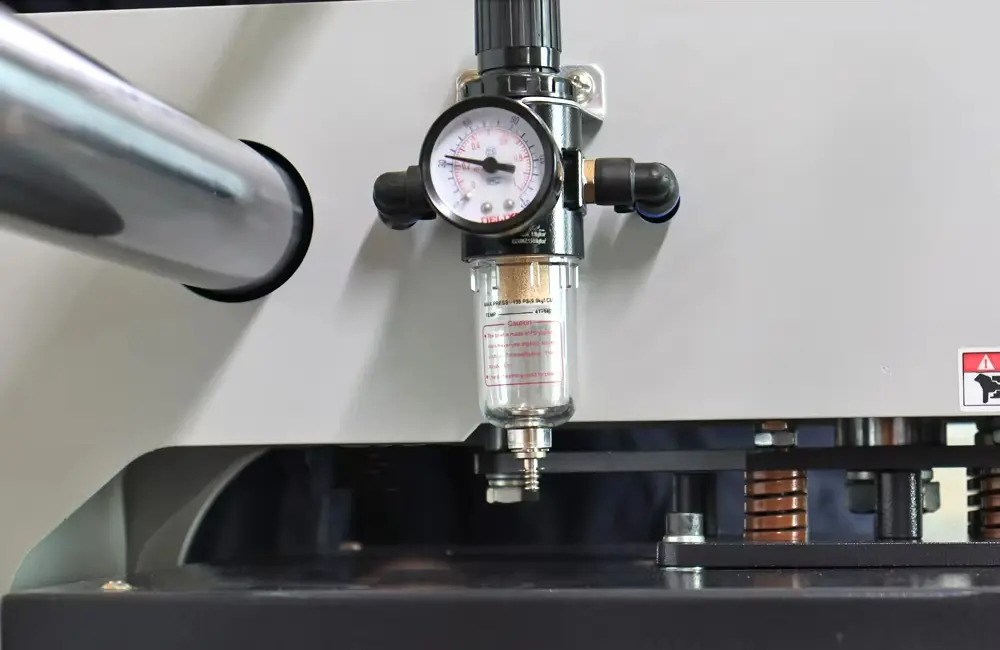

- Adjustable air pressure with a built-in air reducing valve & water separator
- Two-hand safety operation for enhanced workplace security
- CE & RoHS certified for compliance and reliability
- Laser Positioning System for precise alignment
- Includes a Teflon-coated heat plate, table, and bottom stand
- Powered by an external air compressor (not included)
- Lifetime factory online service support
Benefits
- combines heavy-duty solid steel industrial grade pressing framework with accurate and easy to use electronics
- increased productivity by relieving the operator of the physical tasks normally associated with manually clamping presses
PLEASE NOTE: DOES NOT INCLUDE THE AIR COMPRESSOR.
